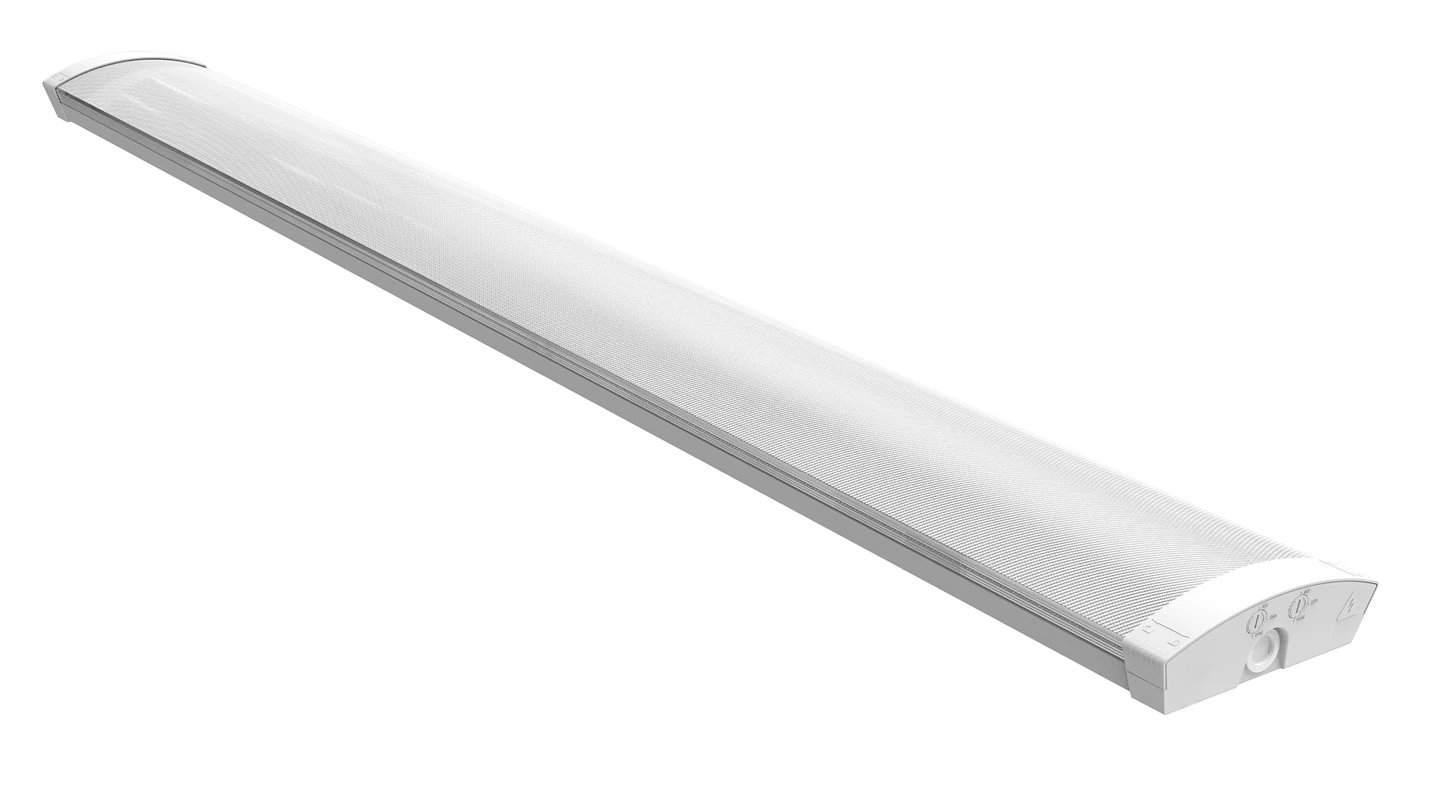

Hilton UGR Batten Light

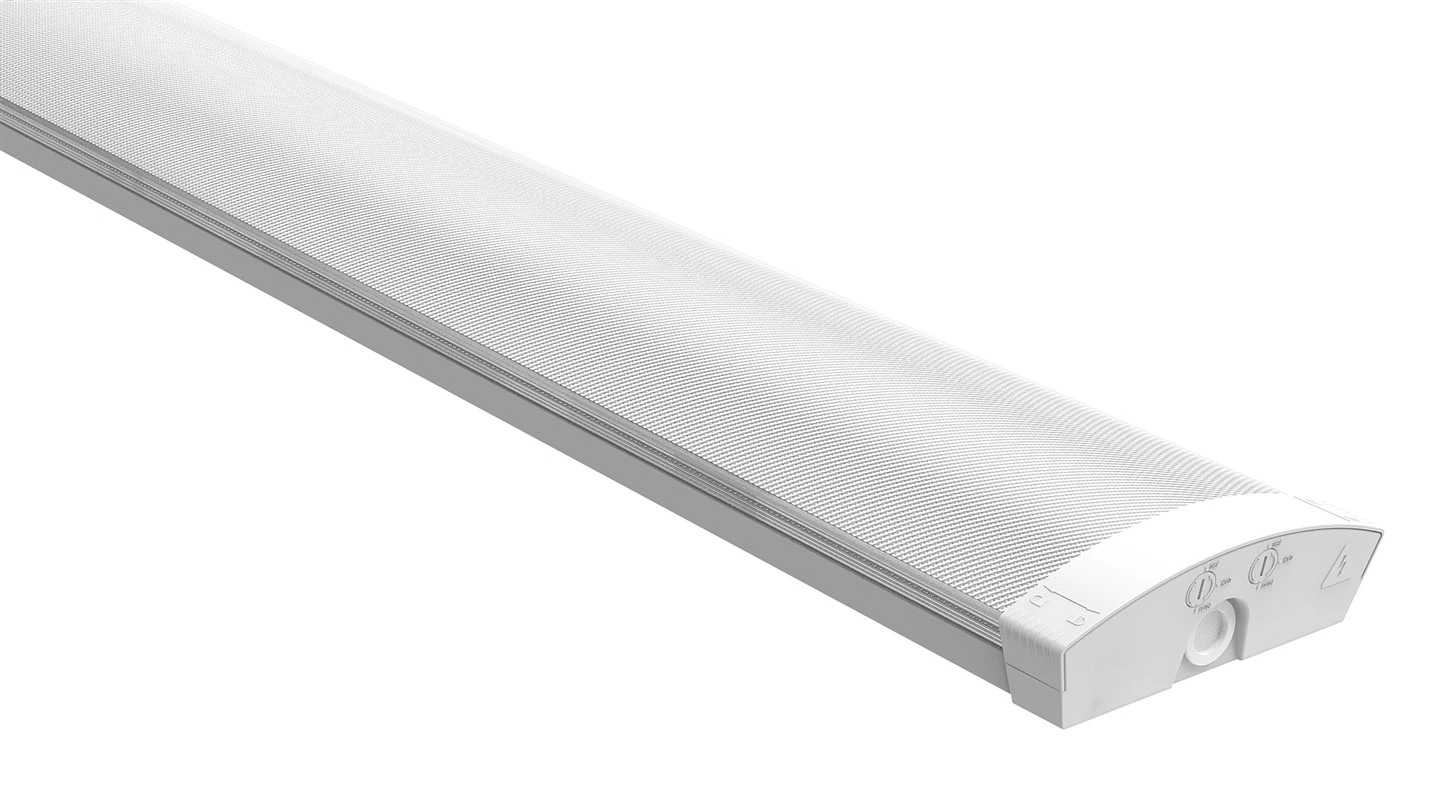

Hilton UGR batten -2

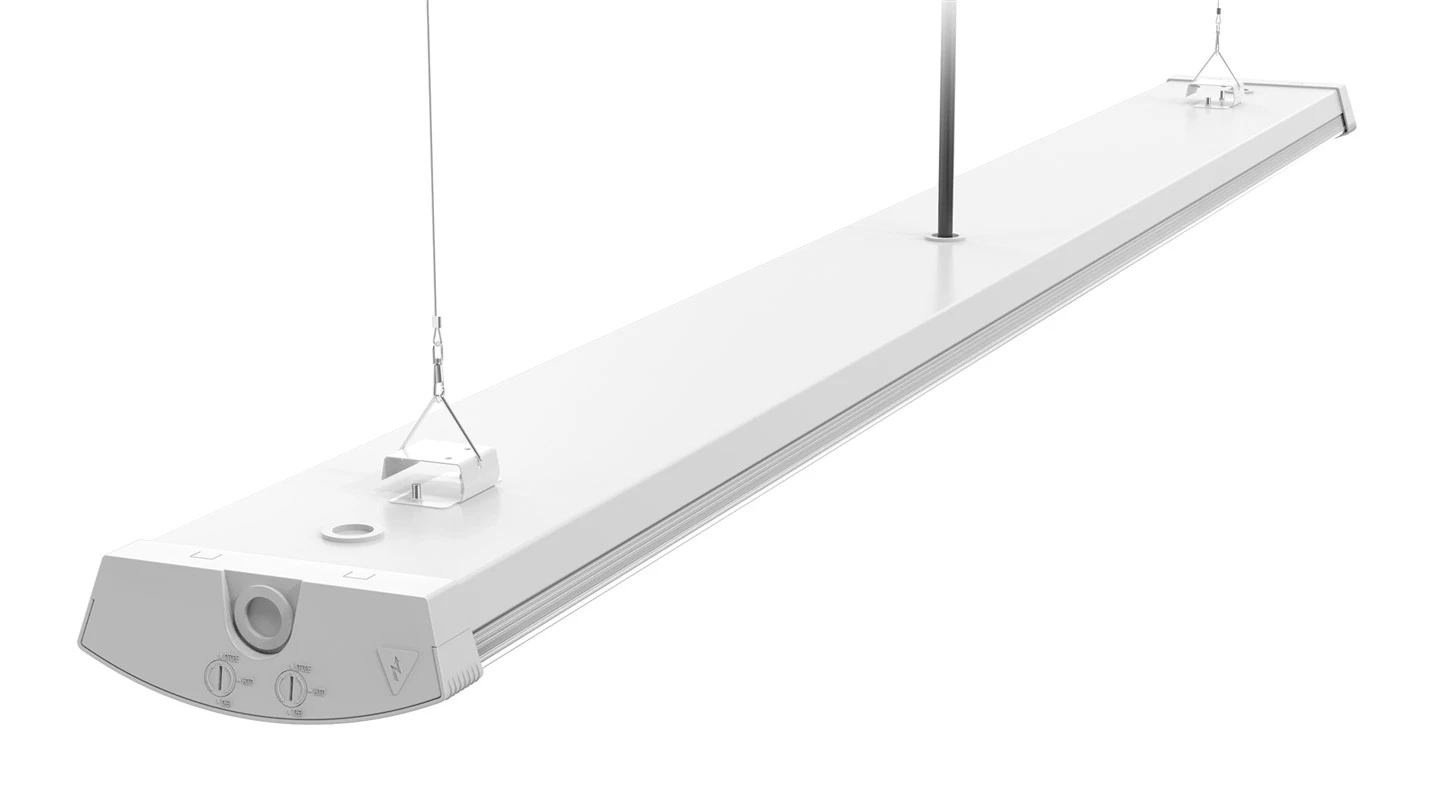

Hilton UGR batten -3

Hilton UGR batten -4

Hilton UGR batten -5

Apejuwe:

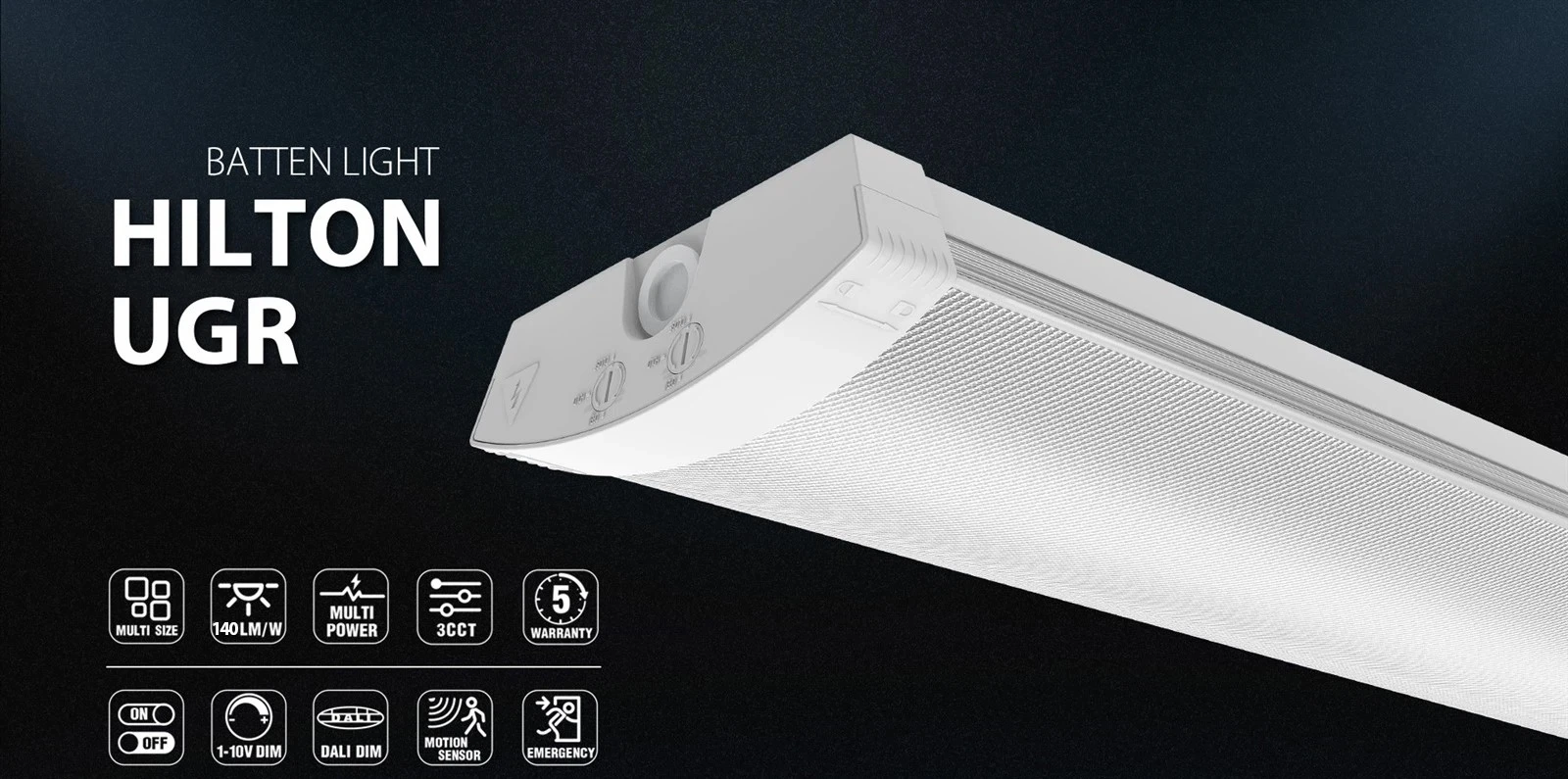

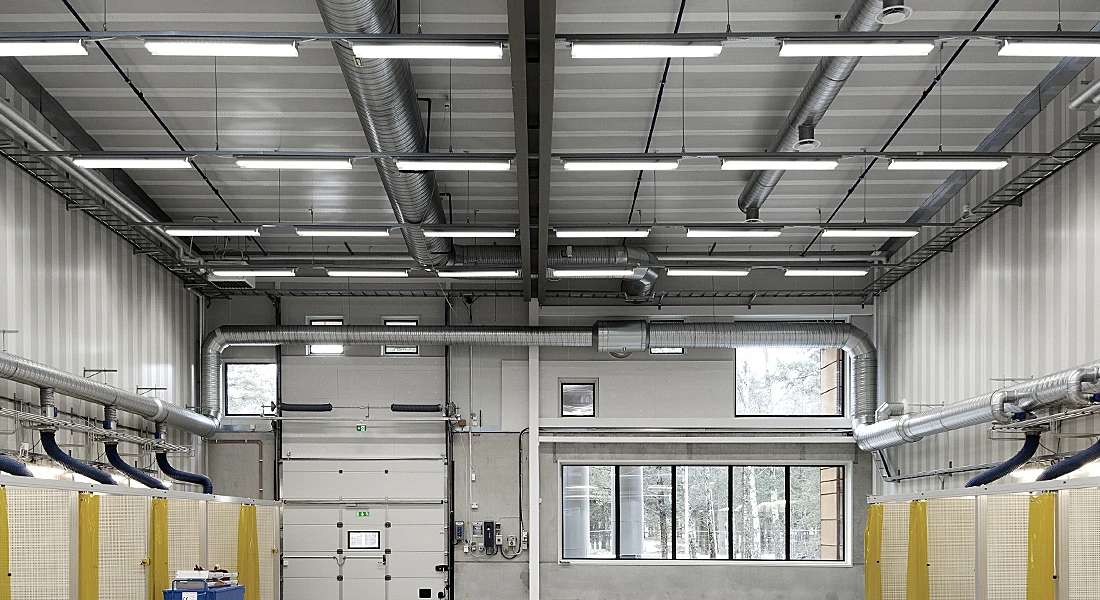

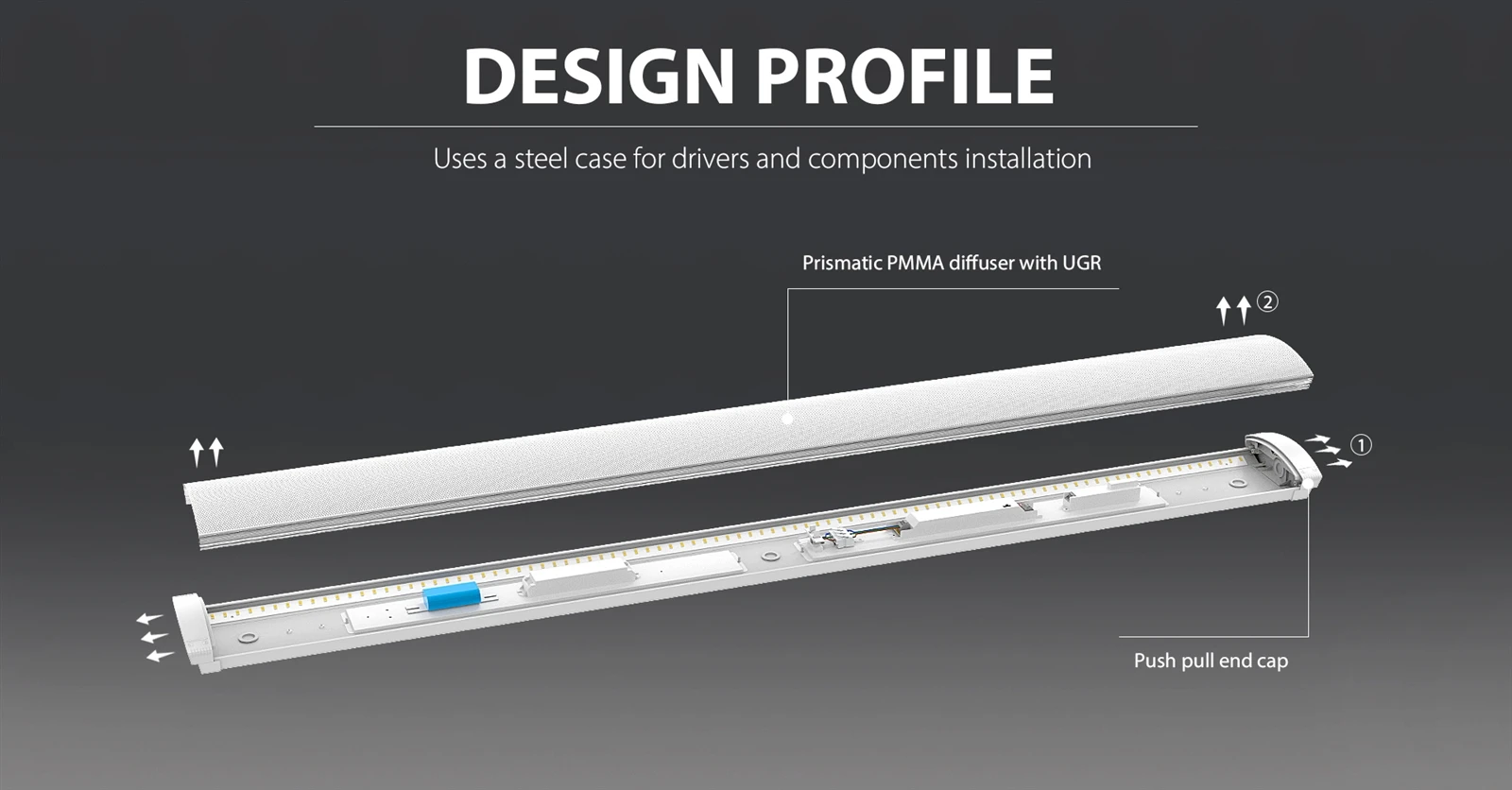

Hilton batten jẹ apẹrẹ tuntun lati lo olupin PMMA prismatic pẹlu UGR, eyiti o jẹ ki hilton batten olokiki diẹ sii lori iṣowo ati awọn ohun elo ogba. Ọran irin jẹ ki hilton batten ni iye owo diẹ sii, Watt ati CCT yipada lori awakọ bi boṣewa eyiti o jẹ ki alabara rọrun diẹ sii fun awọn ohun elo oriṣiriṣi.

Awọn ẹya:

>UGR<19 with prismatic diffuser

>Agbara ati CCT yipada lori awakọ LED

>Ra80 tabi Ra90, SDCM<3

>Standard mimọ iho fun onirin input

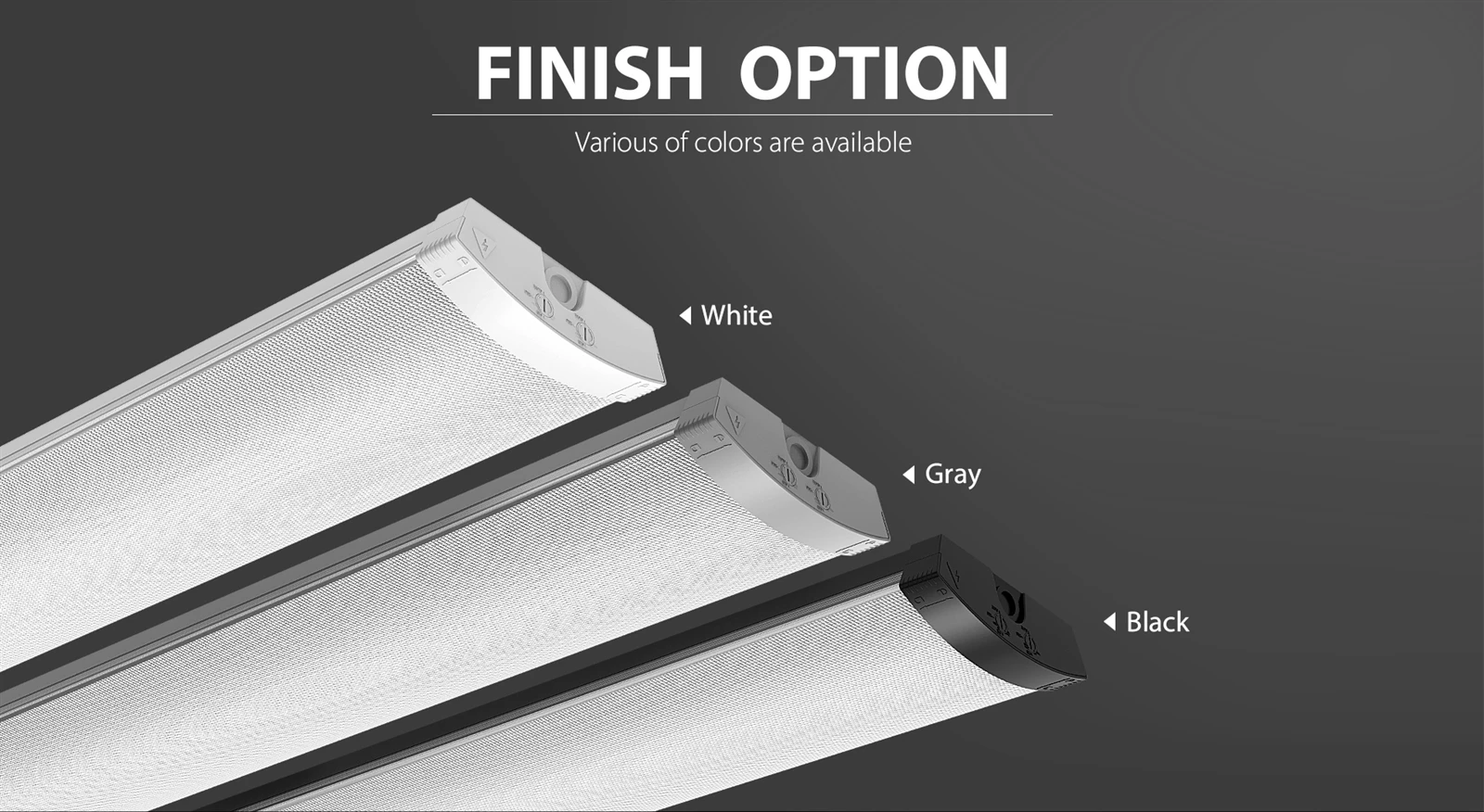

>Orisirisi ti o yatọ si awọn iṣẹ bi awọn aṣayan

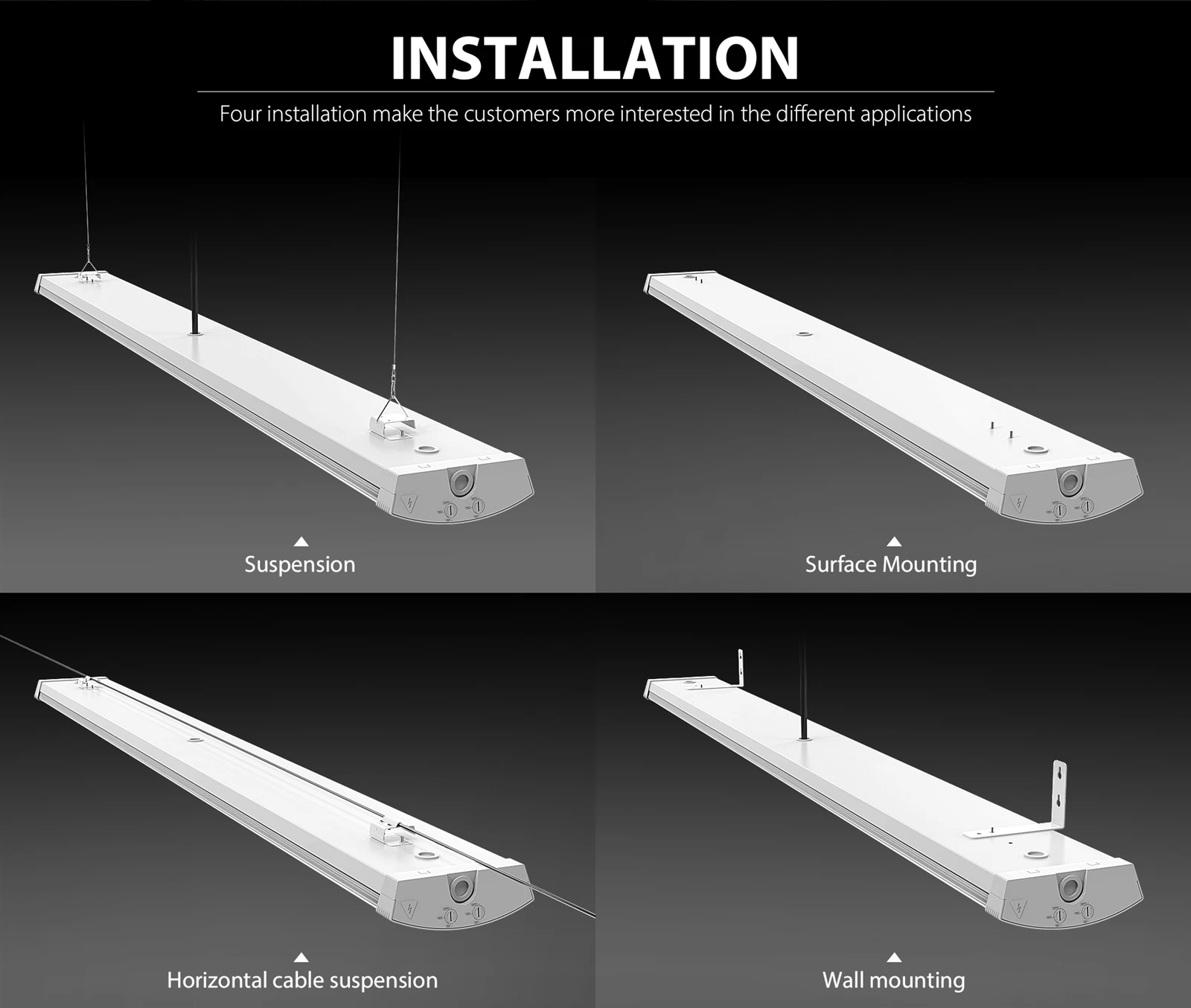

>Dada iṣagbesori / idadoro fifi sori

>5 years atilẹyin ọja

Send Inquiry

Download

Description

Technical Parameters

ÌBÁLẸ̀:

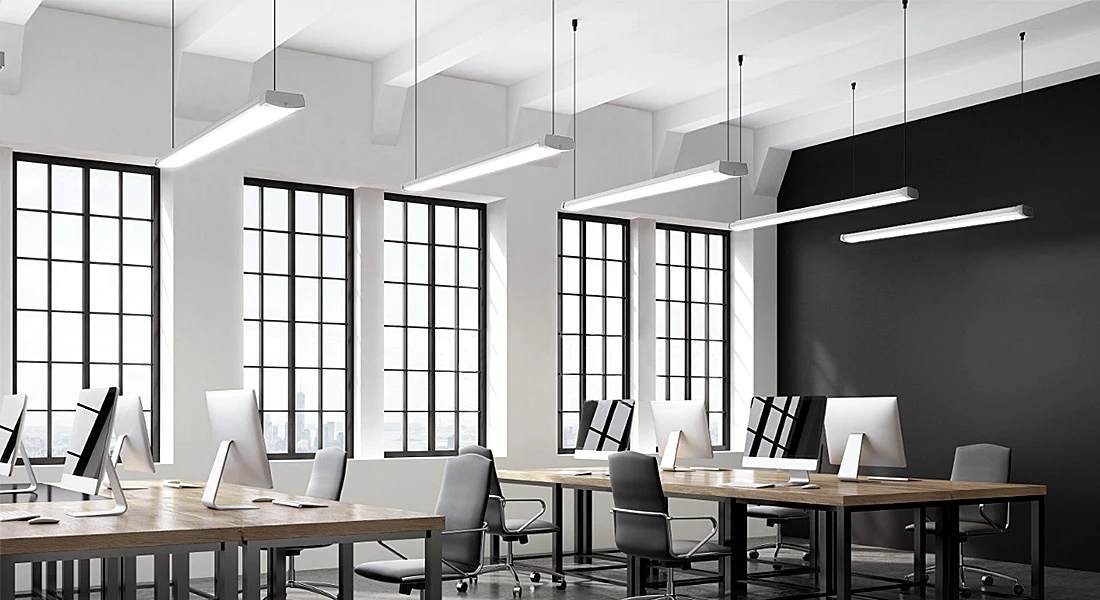

Imọlẹ batten Hilton UGR jẹ apẹrẹ bi ibamu ina batten pipe pipe fun awọn ọfiisi, awọn ile-iwe, awọn ile-ikawe pẹlu iṣelọpọ lumen ti o ga lakoko ti o pese iṣẹ didan kekere kan pẹlu olutọpa prismatic. Aluminiomu ile pese ẹya o tayọ ooru wọbia. O rọrun lati fi sori ẹrọ ati pe o ni awọn paati rirọpo fun itọju iyara.

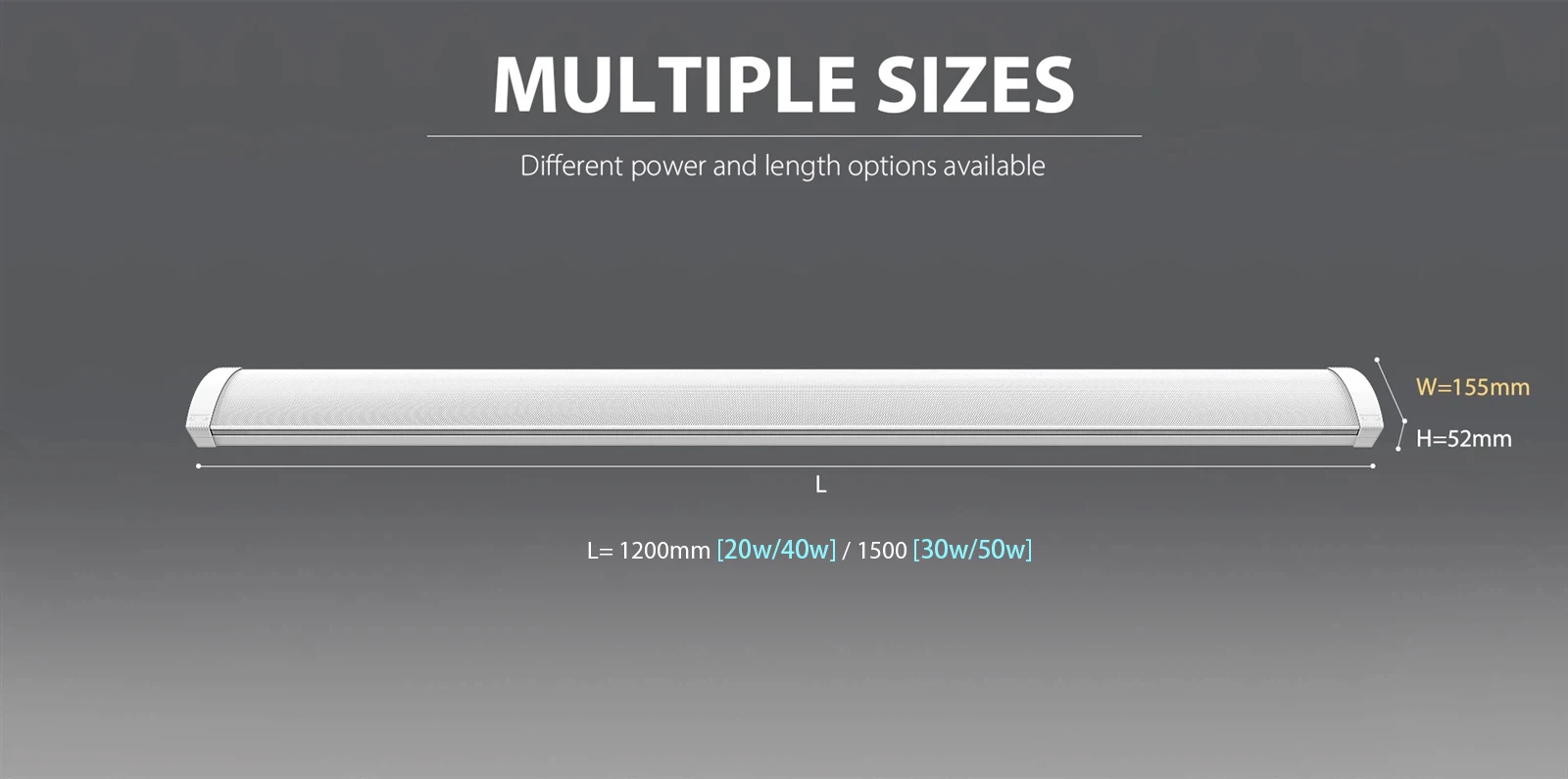

koodu ibere	Ìbú	Ti won won Agbara	LM/W	Lumen	UGR	CRI	SDCM	Watt/CCT Yipada	Ọja Dimension	GW/CTN	QTY/CTN
BT320-04W-DT1-40F01	155mm	20/40W	iru.140	oriṣi.2800/5600	UGR<19	Ra80/90	<3	Y	L1200xW155xH52	9.2kg	4pcs
BT320{1}05W-DT1-50F01	155mm	30/50W	iru.140	iru.4200/7000	UGR<19	Ra80/90	<3	Y	L1500xW155xH52	11.2kg	4pcs
