Imọlẹ oofa

Magnetic Light

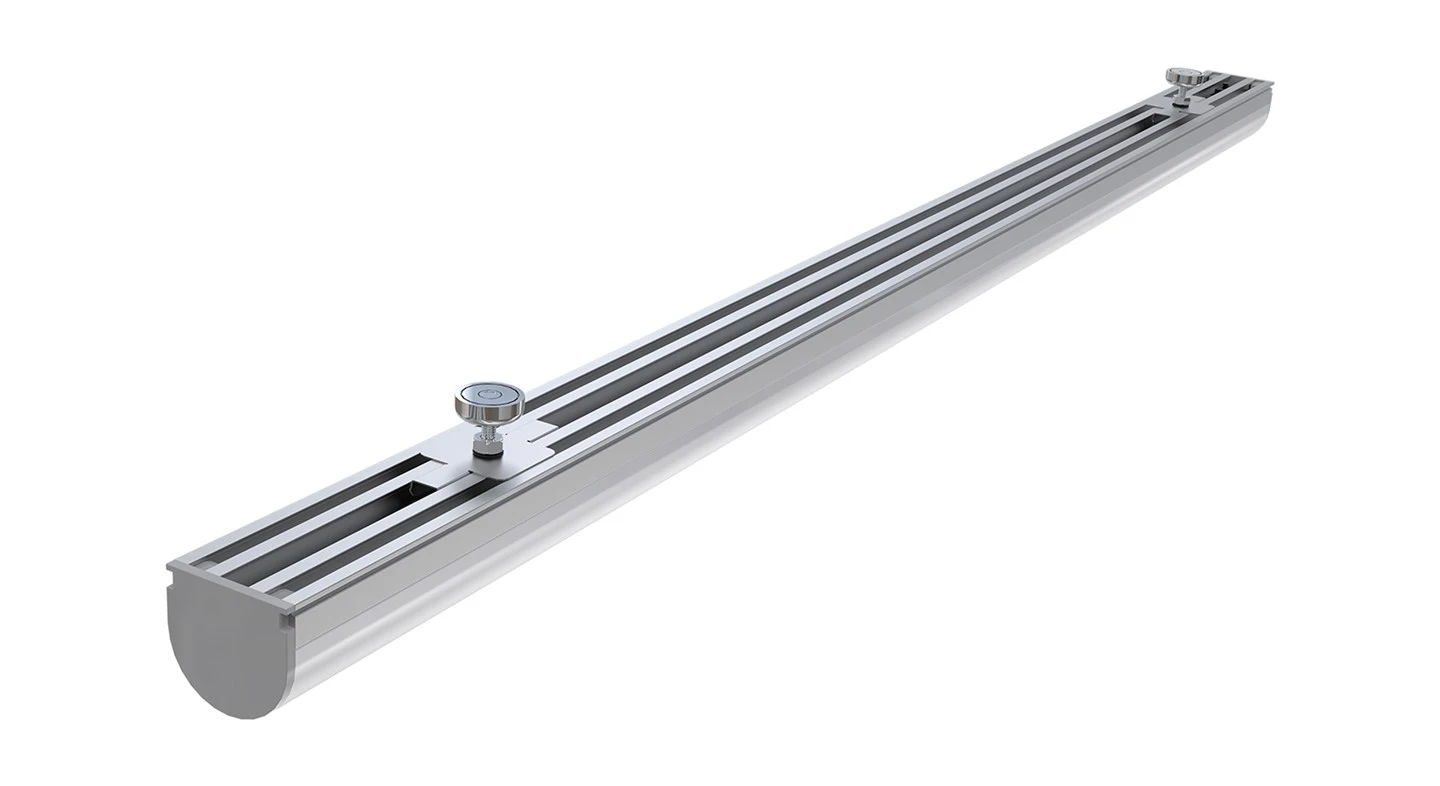

Magnetic Retrofit--2

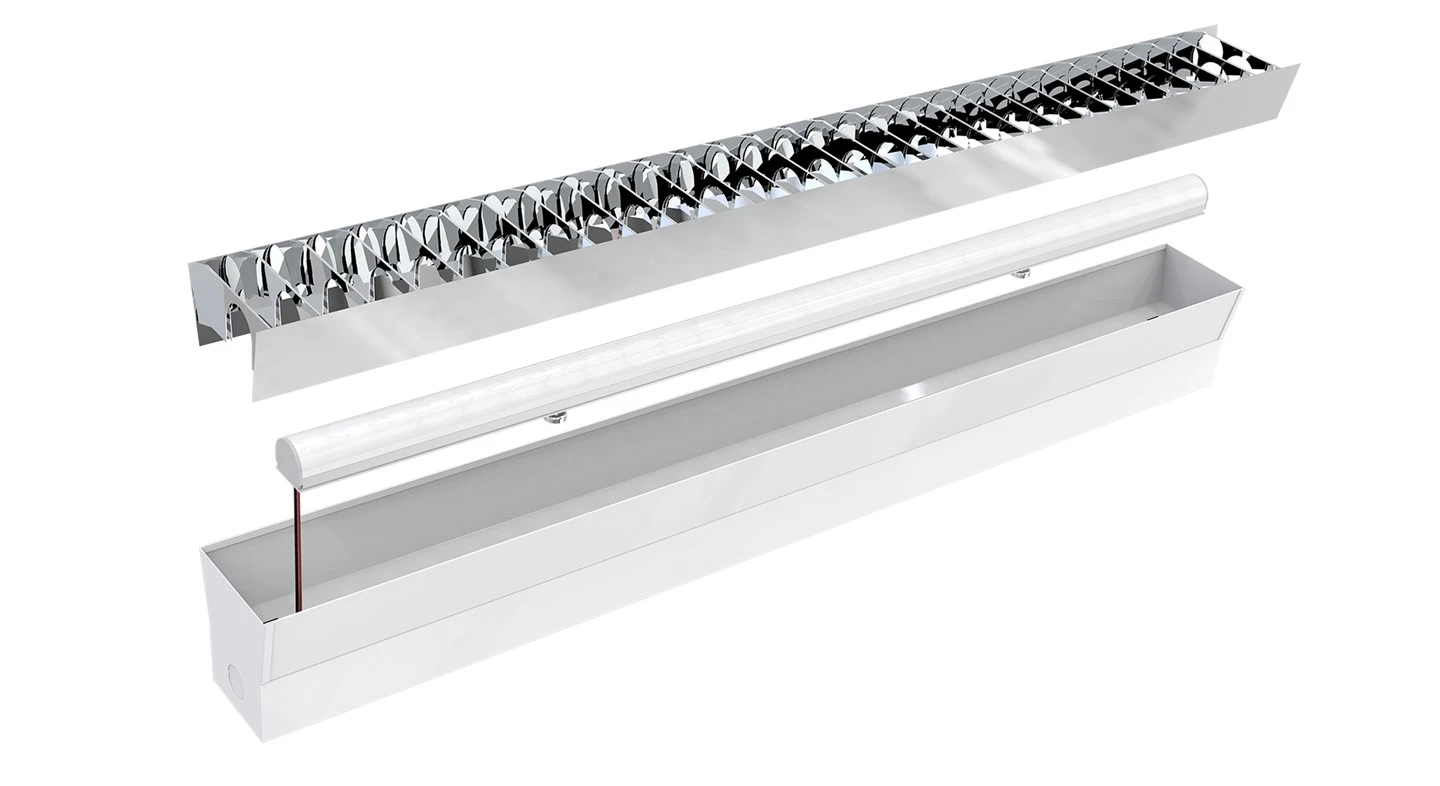

Magnetic Retrofit--3

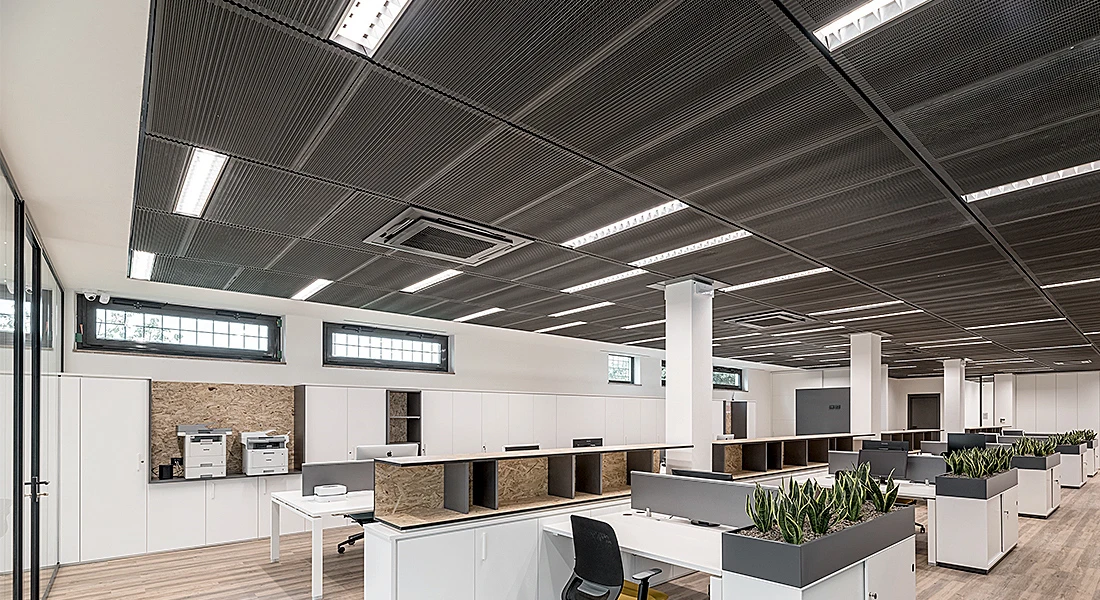

Magnetic Retrofit--4

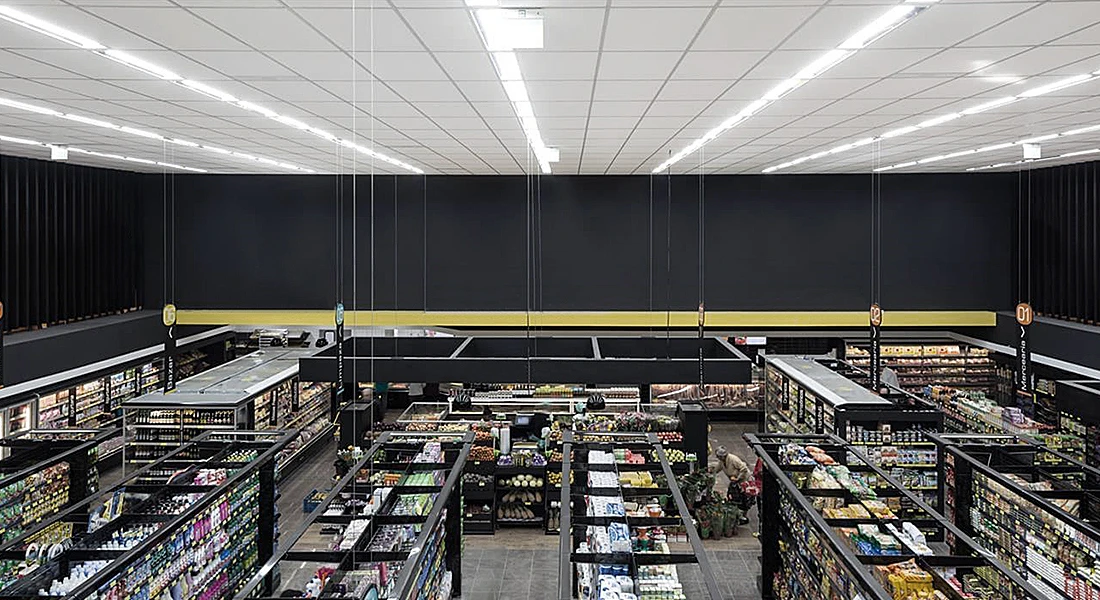

Magnetic Retrofit--5

Apejuwe:

Magnetic LED Retrofit is an LED module with up to 130lm/w (Ra>90, R9>50, SDCM<3). Magnet tool-free installation, easy to maintain, saves labor costs. It is widely used to replace the traditional T5/T8 fluorescent tube light inside grille lights in offices, schools, hypermarkets, and retail stores.

Ẹya ara ẹrọ:

>Apẹrẹ itọsi lati ropo ibile T5/T8 Fuluorisenti tube ni troffer

>Agbara ati Awọ (3CCT) aaye -ṣe atunṣe

> Up to 130lm/w@4000lm (Ra>90,R9>50,SDCM<3)

>Irinṣẹ oofa - fifi sori ẹrọ ọfẹ, rọrun fun itọju, fipamọ iye owo iṣẹ

>80% fifipamọ agbara diẹ sii ni akawe pẹlu awọn atupa Fuluorisenti

Send Inquiry

Download

Description

Technical Parameters

ÌBÁLẸ̀:

Toppo Magnetic LED Retrofit is a time-saving alternative to directly replace fluorescent lamps with LEDs. High efficacy up to 135 lm/w (Ra>90, R9>50, SDCM<3), power switch from 14-30W, 3CCT switch from 3000K/4000K/5000K, various sizes of L540mm, L1160mm, L1460mm. With magnetic, tool-free installation, in just 1 minute, your existing fluorescent tube fixtures (recessed, strip, wrap, etc.) can be converted to energy-efficient, long-lasting LED lights while preserving the look of your space.

koodu ibere	Ti won won Agbara	LM/W	Lumen	SDCM/Ra	IP Kilasi	Ọja Dimension	GW/CTN	QTY/CTN
TU100-02N-PT1-24F10-01	14W/24W	Iru.120	iru.1680/2880	SDCM<3/Ra80,90	IP20	L540xW26xH24	9.91kg	25pcs
TU100-04N-AT1-30F10-01	14W/30W	Iru.130	iru.1820/3900	SDCM<3/Ra80,90	IP20	L1160xW26xH24	14.93kg	25pcs
TU100-05N-AT1-30F10-01	14W/30W	Iru.130	iru.1820/3900	SDCM<3/Ra80,90	IP20	L1460xW26xH24	17.4kg	25pcs

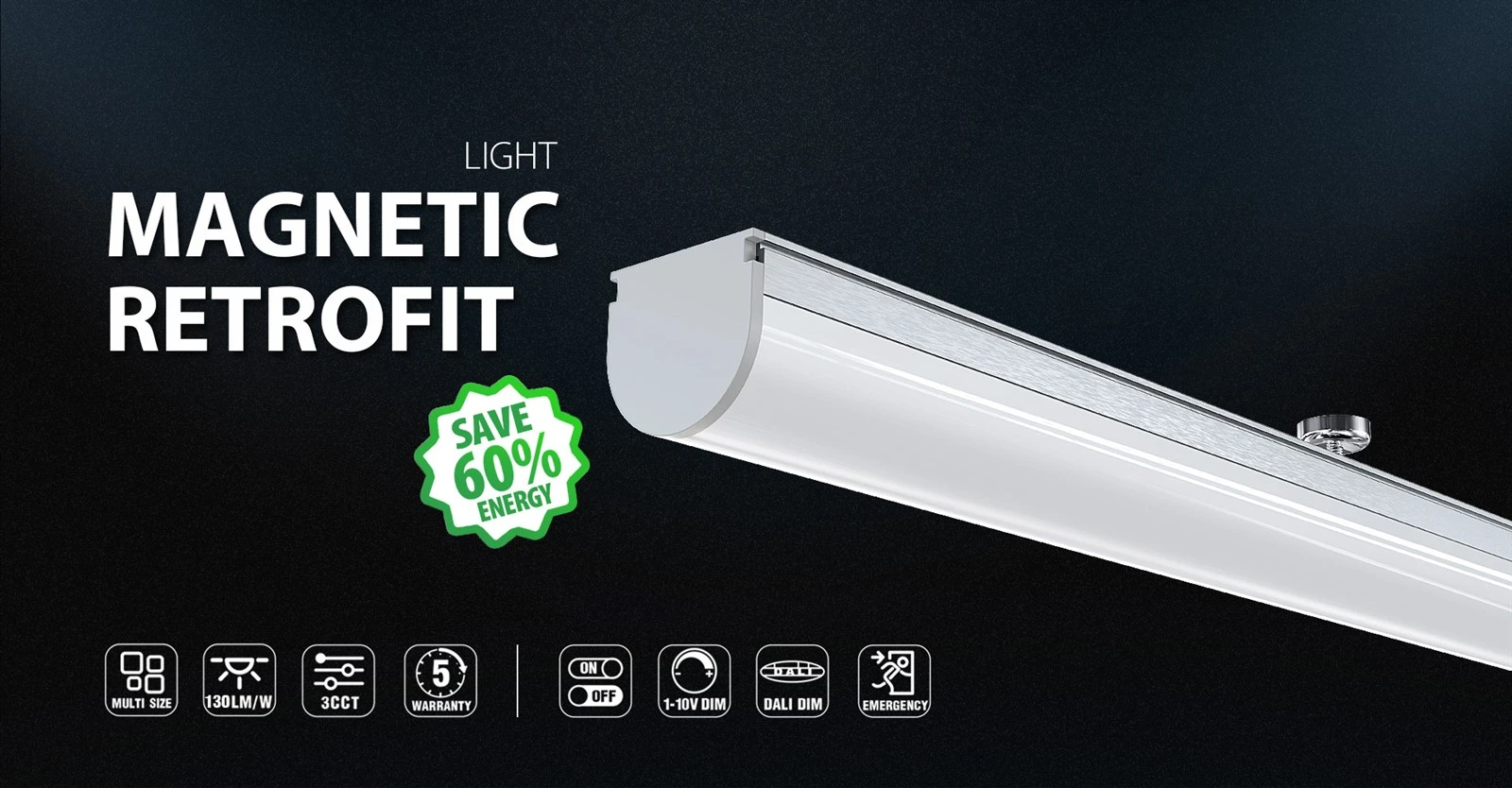

Magnetic Retrofit -1

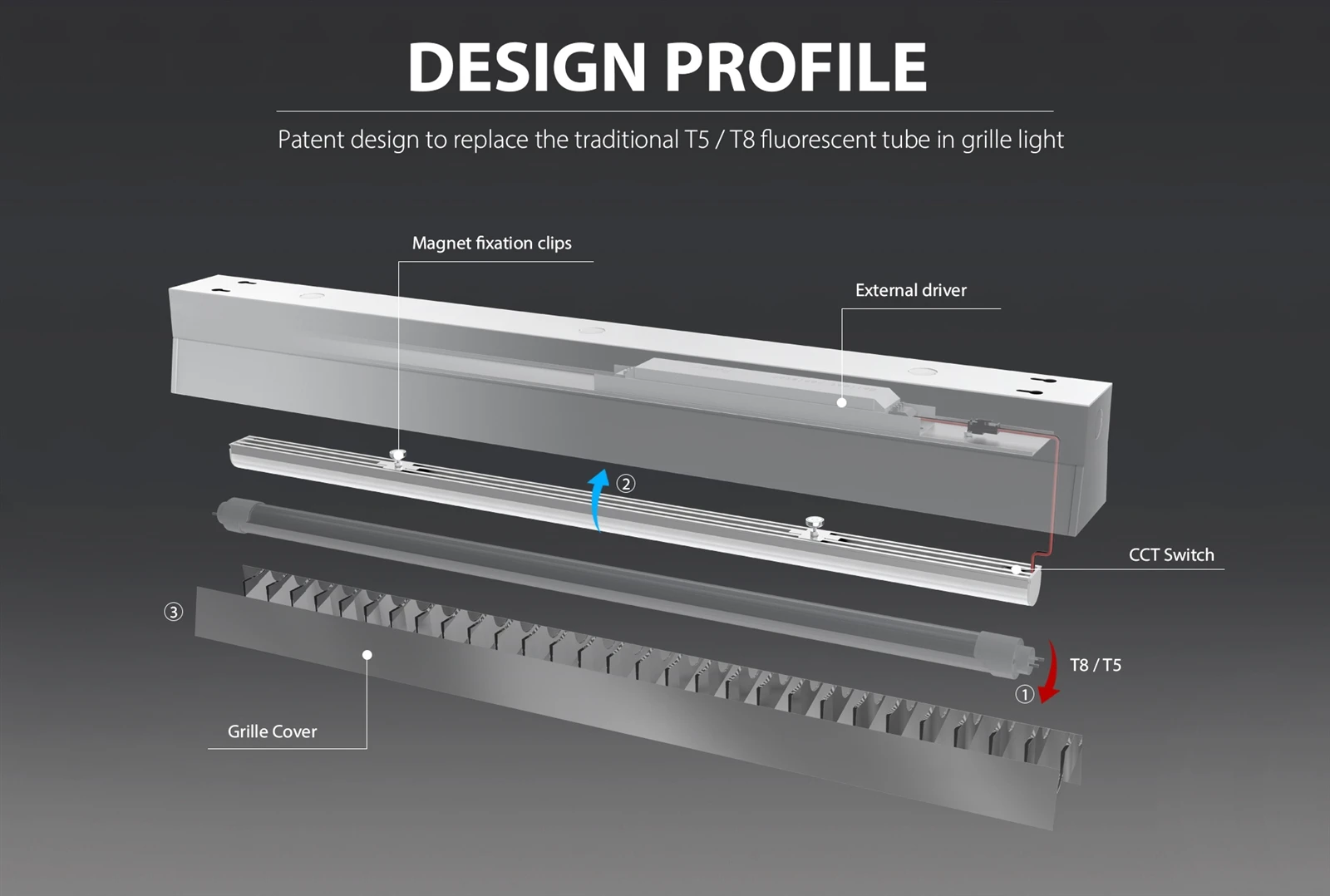

Magnetic Retrofit -2

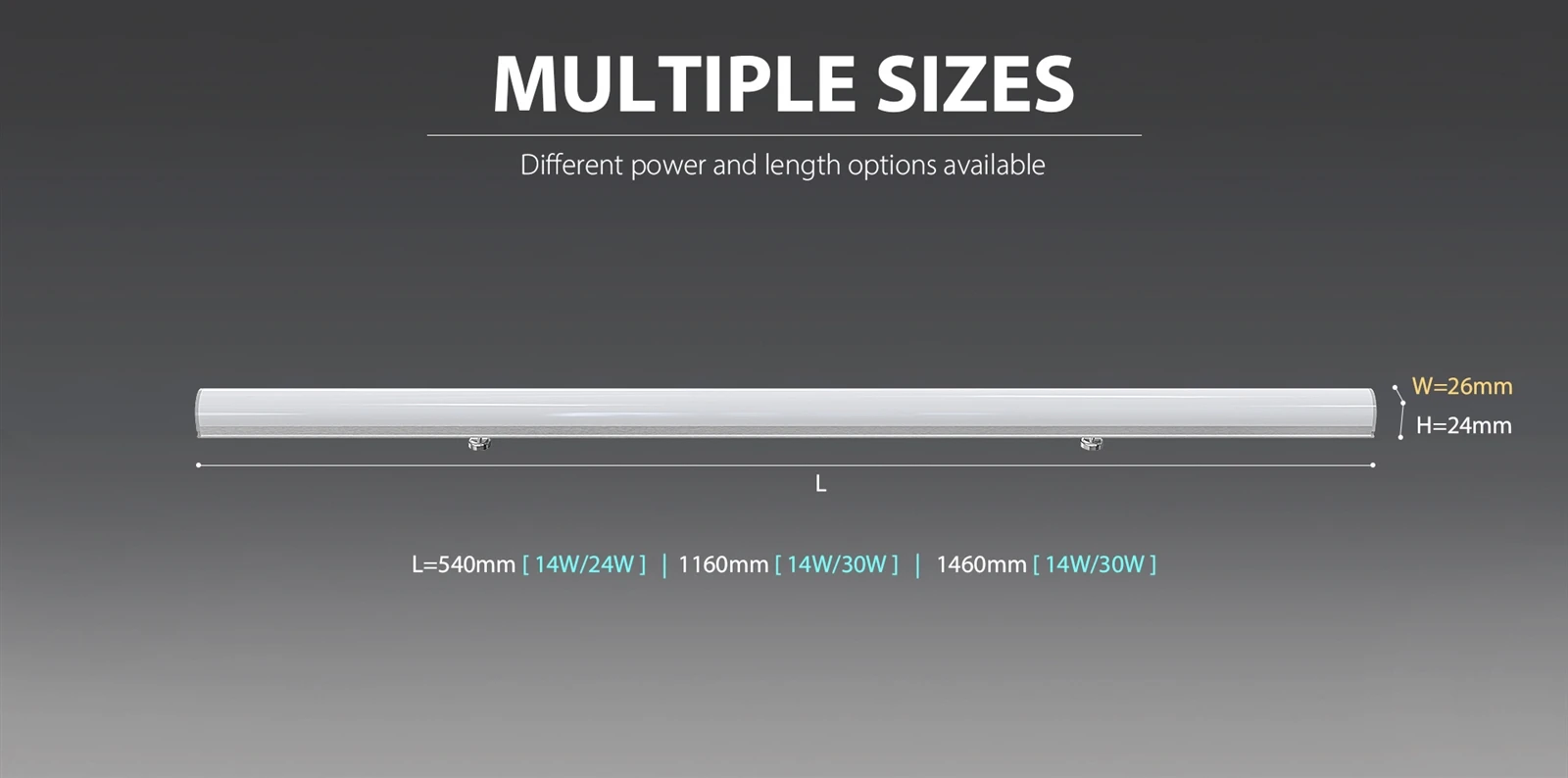

Magnetic Retrofit -3
