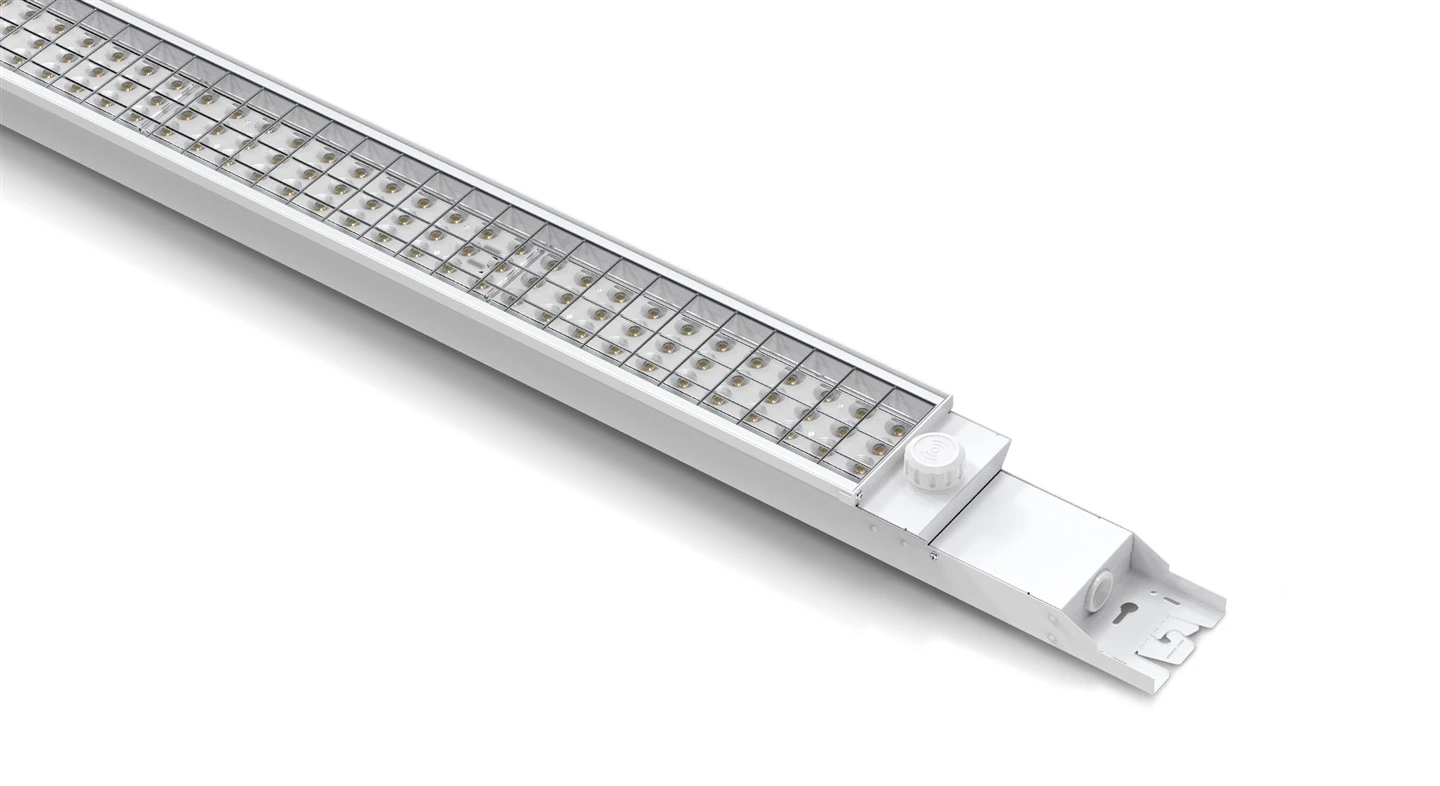

Noridc Industry Light

Apejuwe:

Nord Line jẹ apẹrẹ pẹlu iṣẹ to rọ ati pinpin ina deede. O wa pẹlu lẹnsi ati ẹya prismatic kan pẹlu apẹrẹ mitari.Nord Line oriṣiriṣi awọn aṣayan igun tan ina jẹ ki o ṣee ṣe lati fi sori ẹrọ fun awọn ohun elo ile-iṣẹ giga ti o yatọ lati 4-20meters. Awọn akoj mu ki awọn nord ila pẹlu IK10 Idaabobo fun rogodo ẹri, Eyi ti o ṣe awọn nord ila ti wa ni lo fun diẹ ise ati idaraya awọn ohun elo.

Ẹya ara ẹrọ:

>Titi di 180LM/W

>5CCT ati wattaji adijositabulu

>LED module ati iwakọ iyipada

>Pulọọgi ati play sensọ module

>Apẹrẹ mitari

>IP23 / IK08 OR IK10

>7 years atilẹyin ọja

Send Inquiry

Download

Description

Technical Parameters

Moudle Imọlẹ	koodu ibere	Lenth	Ti won won Agbara	LM/W	CRI	SDCM	Iwọn Ọja (MM)
Lẹnsi	NL100-04W-DT1-80F01	1256mm	60-65-75-80W	30 iwọn 180-190lm / w 60 iwọn 185-195lm / w 90 iwọn 180-190lm / w	Ra>80	<3	L1256xW105xH60
Lẹnsi	NL100-04W-DT1-75D01	1256mm	60-65-75-80W	30 iwọn 180-190lm / w 60 iwọn 185-195lm / w 90 iwọn 180-190lm / w	Ra>80	<3	L1256xW105xH60
Lẹnsi	NL100-05W-DT1-10F01	1550mm	70-80-90-100W	30 iwọn 180-190lm / w 60 iwọn 185-195lm / w 90 iwọn 180-190lm / w	Ra>80	<3	L1550xW105xH60
Lẹnsi	NL100-05W-DT1-10D01	1550mm	70-80-90-100W	30 iwọn 180-190lm / w 60 iwọn 185-195lm / w 90 iwọn 180-190lm / w	Ra>80	<3	L1550xW105xH60
Lẹnsi	NL100-05W-DT1-12F01	1844mm	65-85-100-120W	30 iwọn 180-190lm / w 60 iwọn 185-195lm / w 90 iwọn 180-190lm / w	Ra>80	<3	L1844xW105xH60
Lẹnsi	NL100-05W-DT1-12D01	1844mm	65-85-100-120W	30 iwọn 180-190lm / w 60 iwọn 185-195lm / w 90 iwọn 180-190lm / w	Ra>80	<3	L1844xW105xH60
Prismatic V Optic	NL110-04W-DT1-80F01	1256mm	60-65-75-80W	tẹ . 165LM/W	Ra>80	<3	L1256xW105xH60
Prismatic V Optic	NL110{1}04W-DT1-75D01	1256mm	60-65-75-80W	tẹ . 165LM/W	Ra>80	<3	L1256xW105xH60
Prismatic V Optic	NL110-05W-DT1-10F01	1550mm	70-80-90-100W	tẹ . 165LM/W	Ra>80	<3	L1550xW105xH60
Prismatic V Optic	NL110{1}05W-DT1-10D01	1550mm	70-80-90-100W	tẹ . 165LM/W	Ra>80	<3	L1550xW105xH60
Prismatic V Optic	NL110-05W-DT1-12F01	1844mm	65-85-100-120W	tẹ . 165LM/W	Ra>80	<3	L1844xW105xH60
Prismatic V Optic	NL110-05W-DT1-12D01	1844mm	65-85-100-120W	tẹ . 165LM/W	Ra>80	<3	L1844xW105xH60

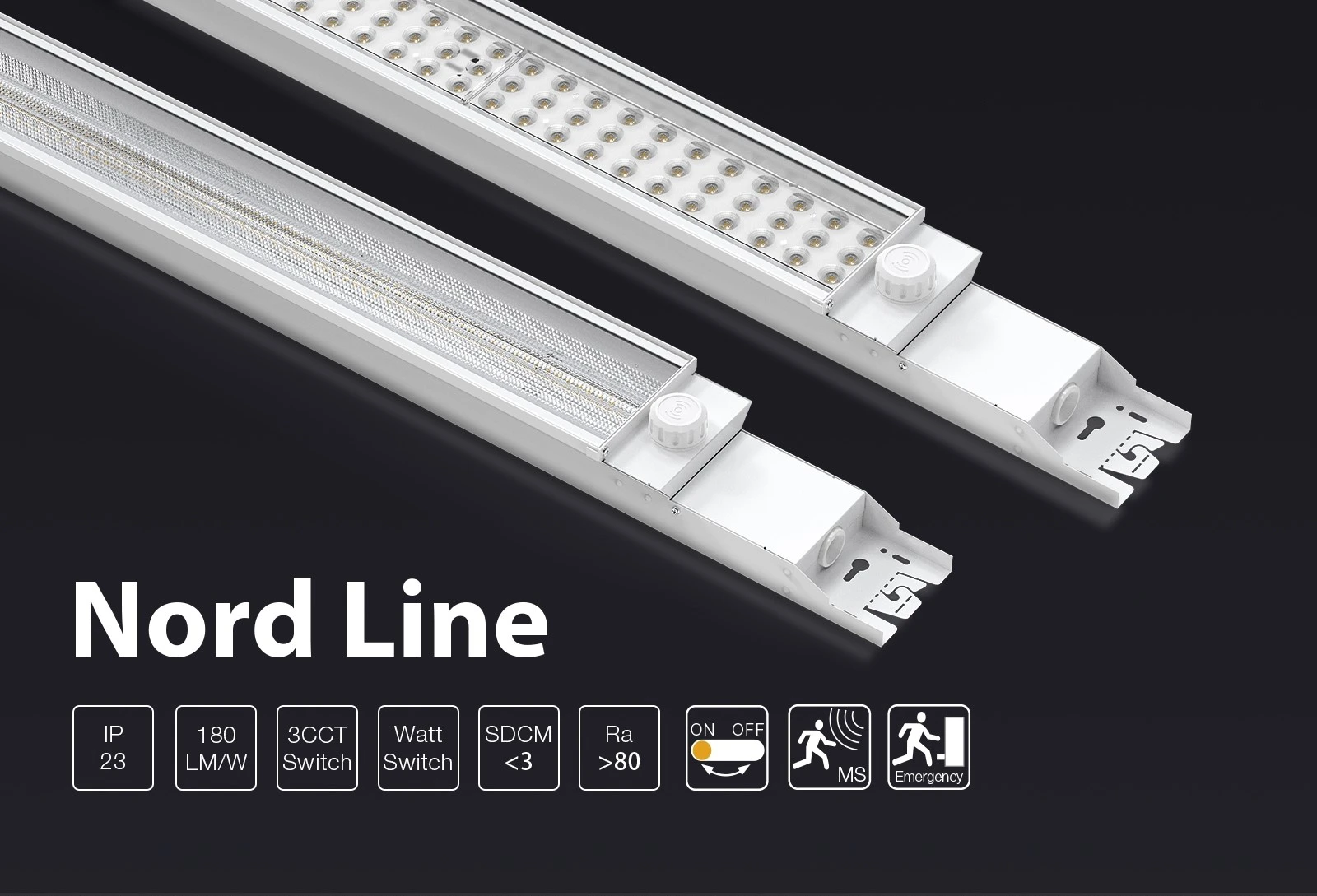

Nord-Line01

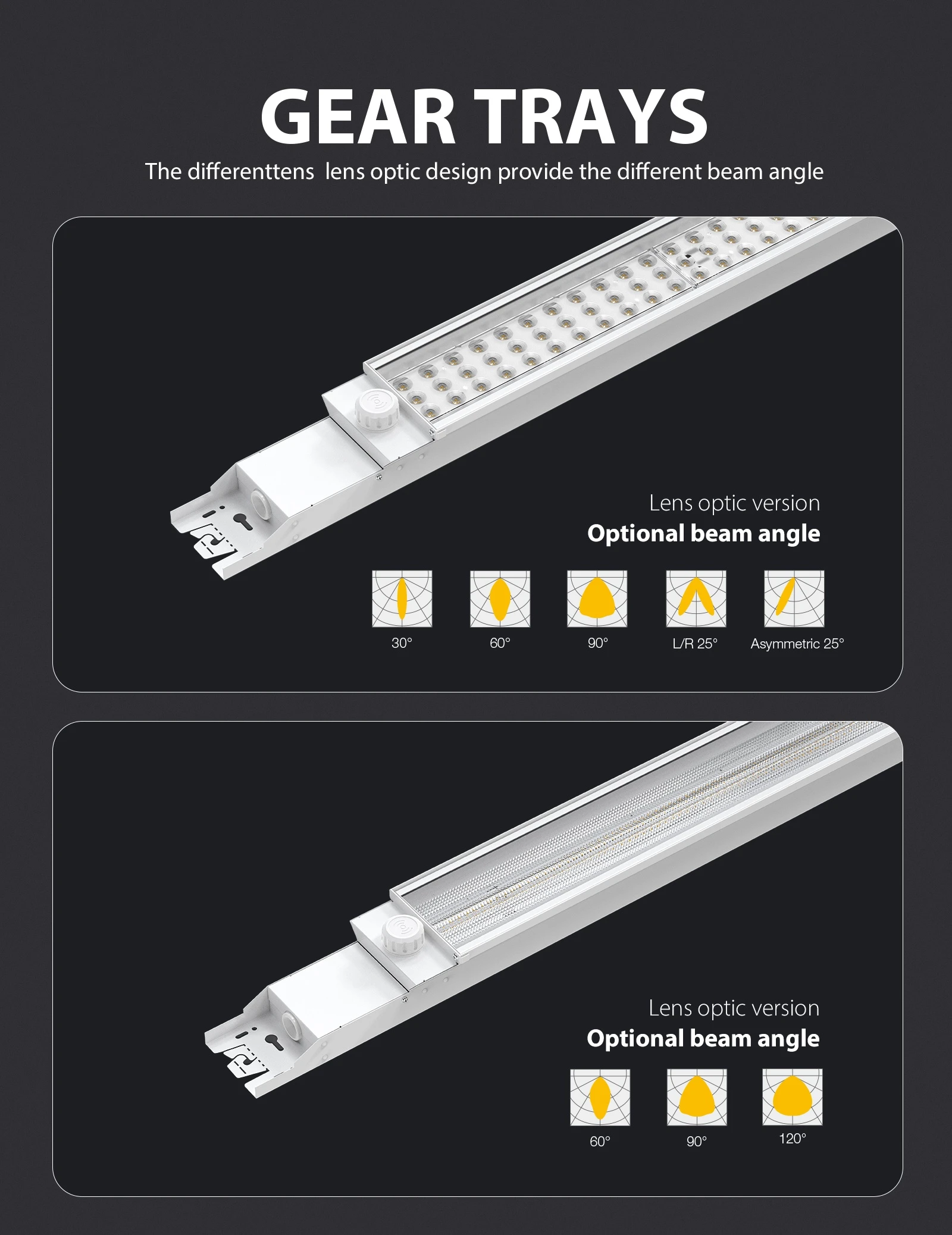

Nord-Line02

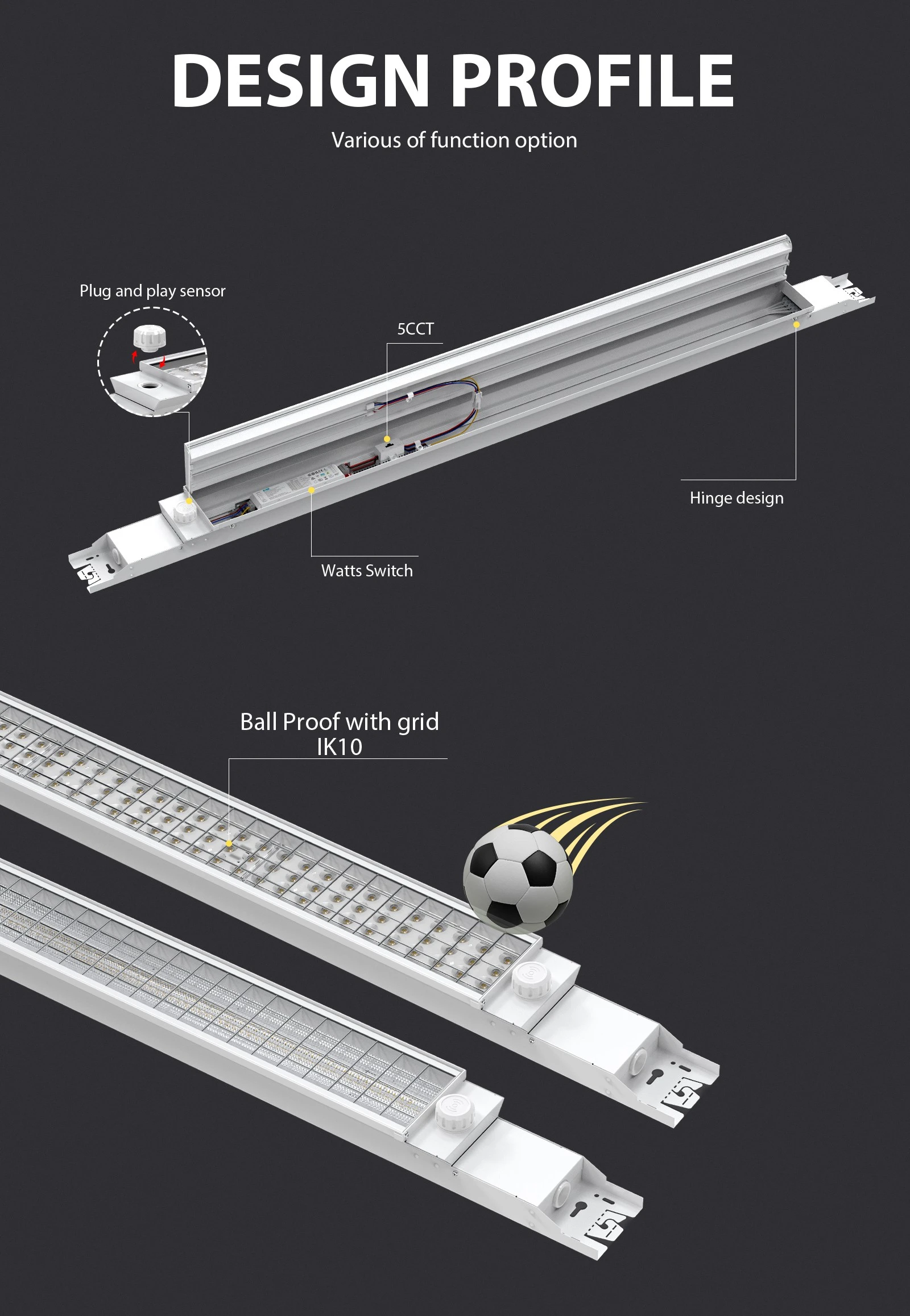

Nord-Line03

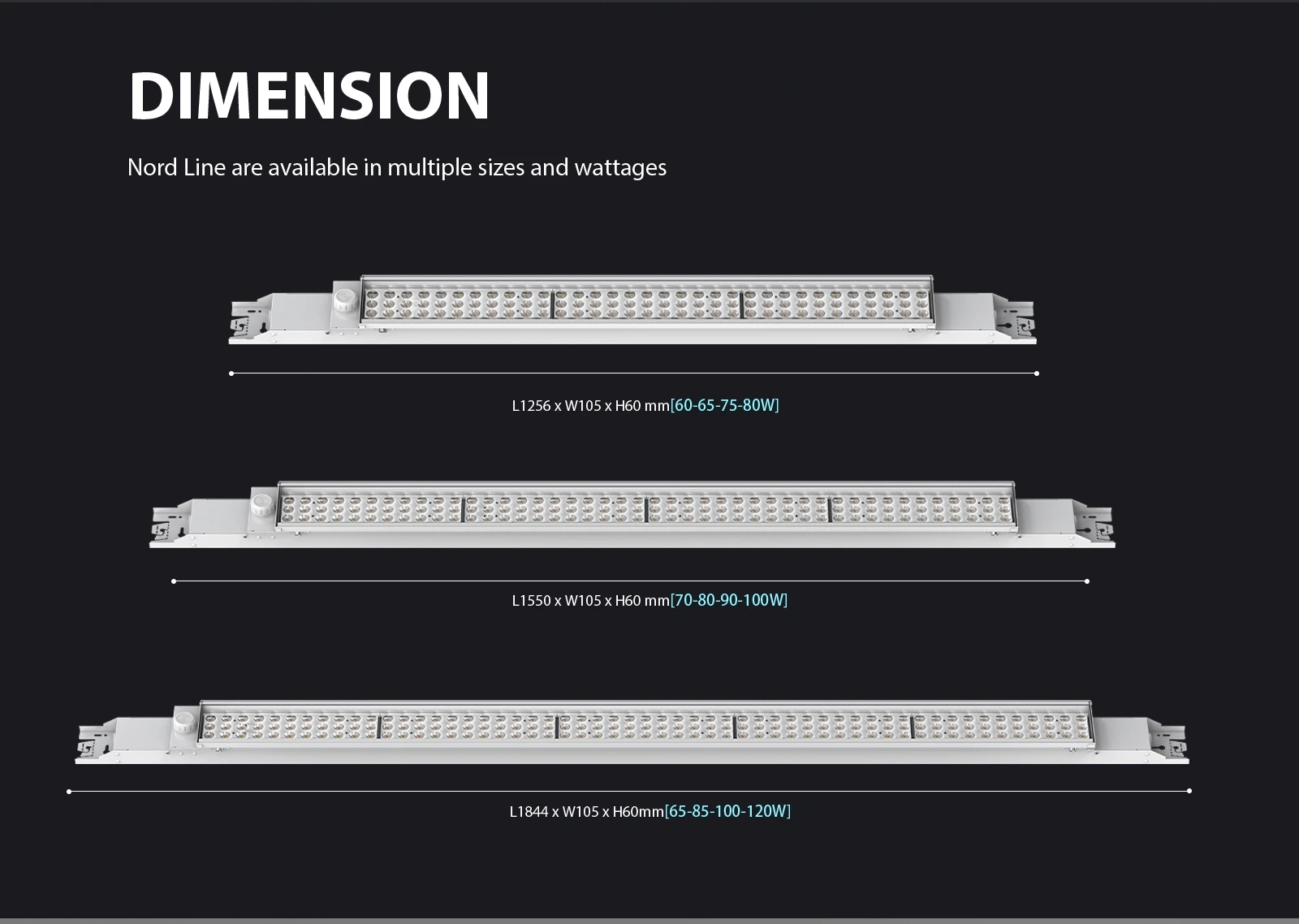

Nord-Line04

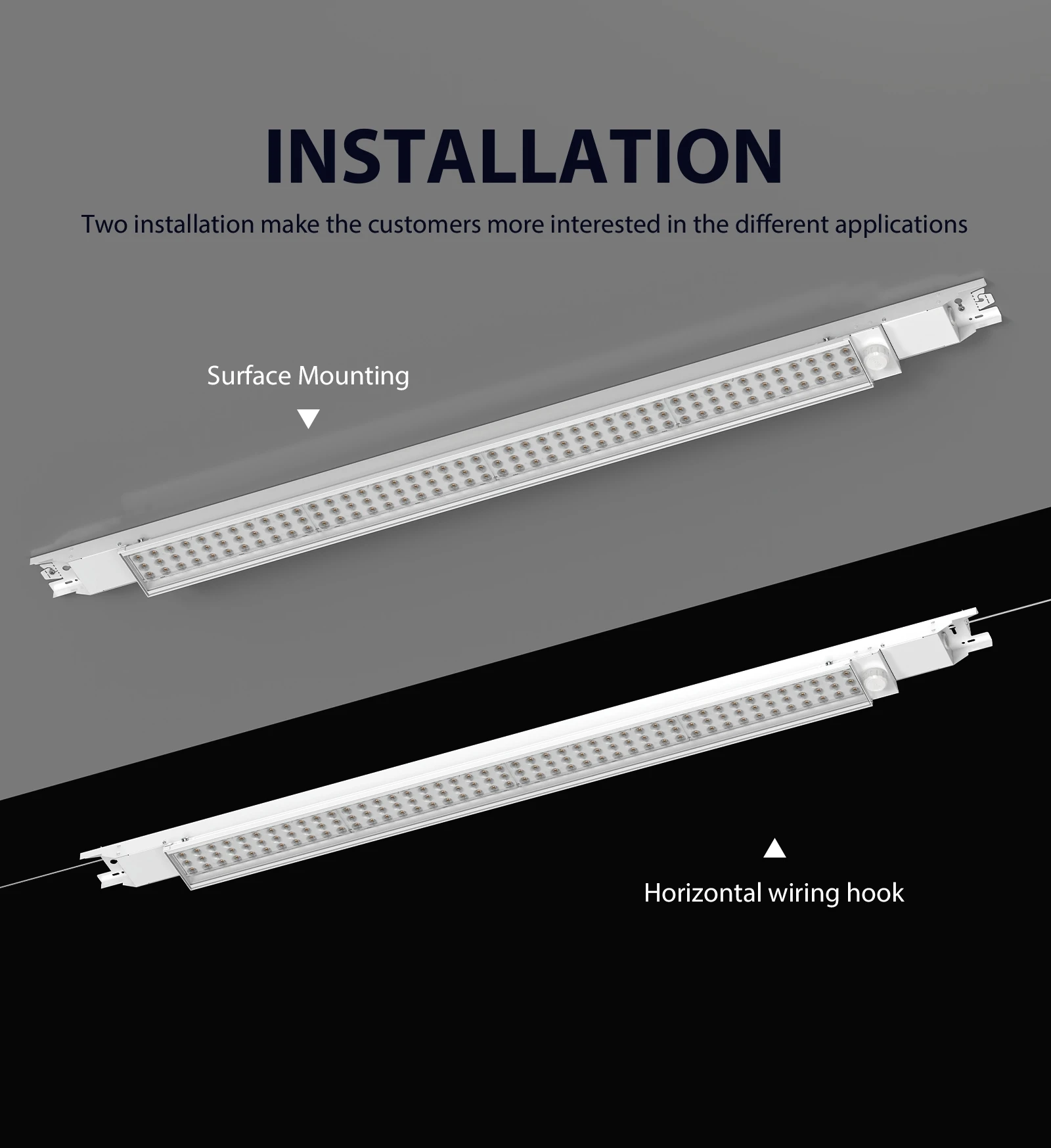

Nord-Line05
