ÌBÁLẸ̀:

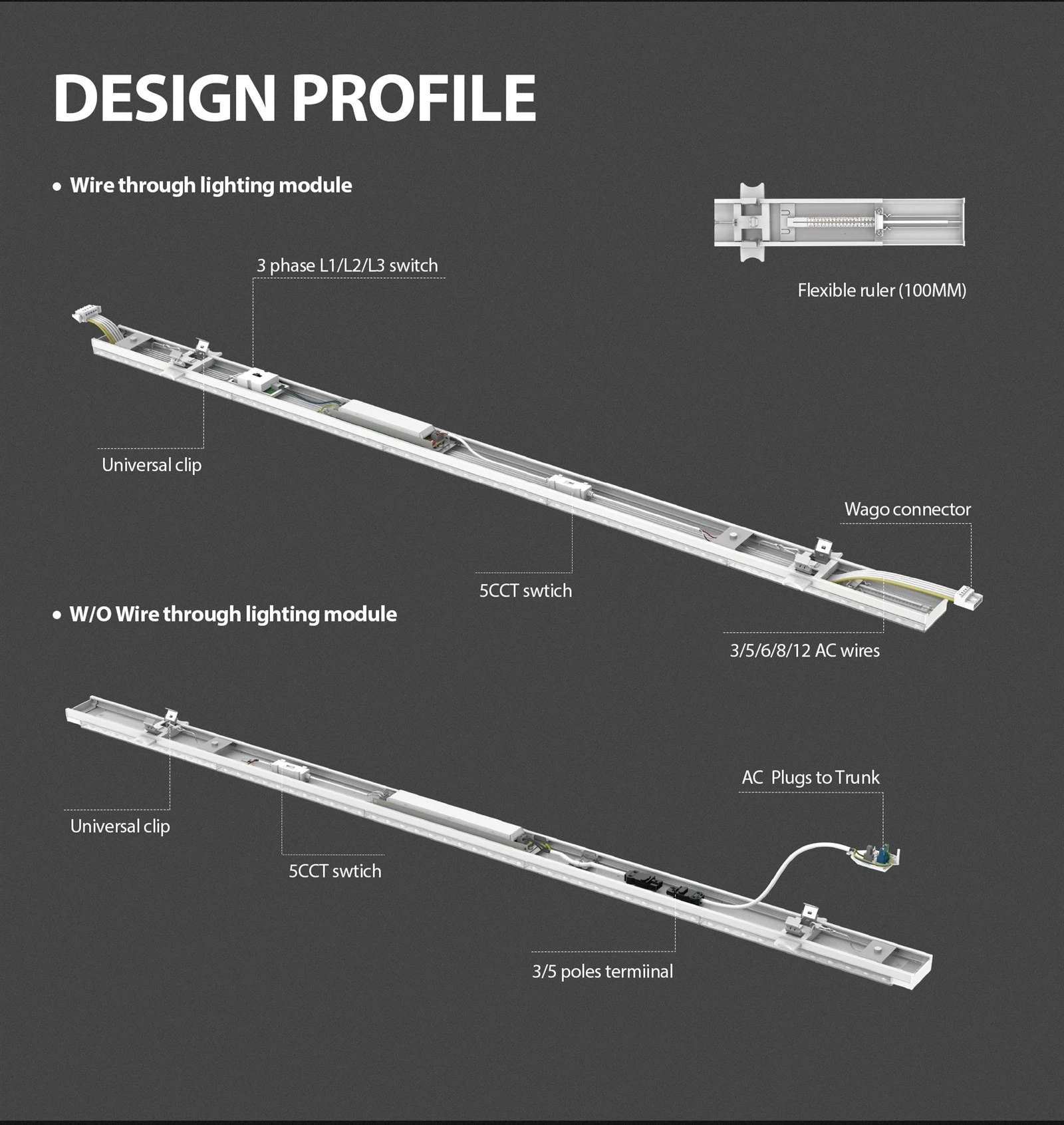

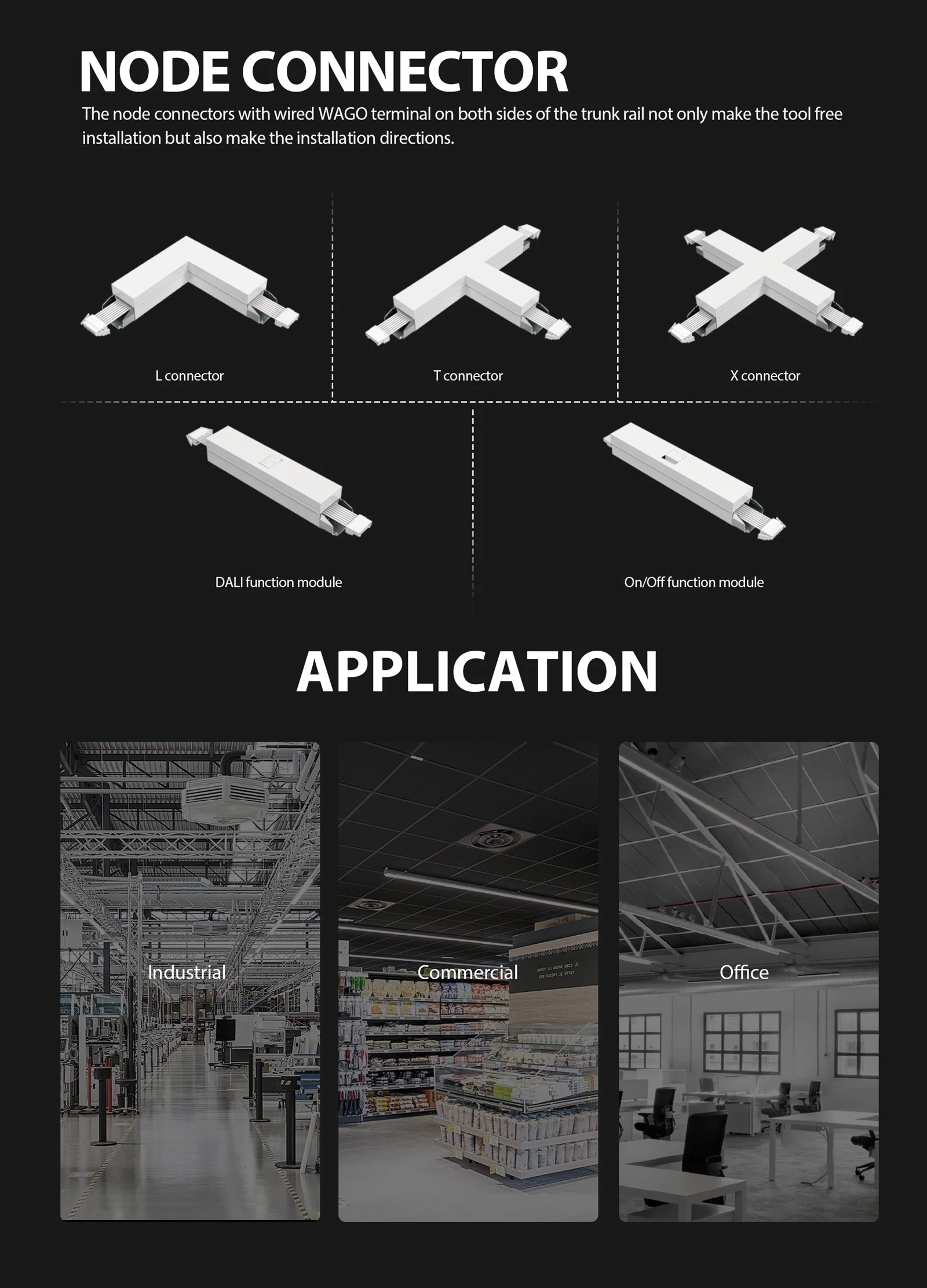

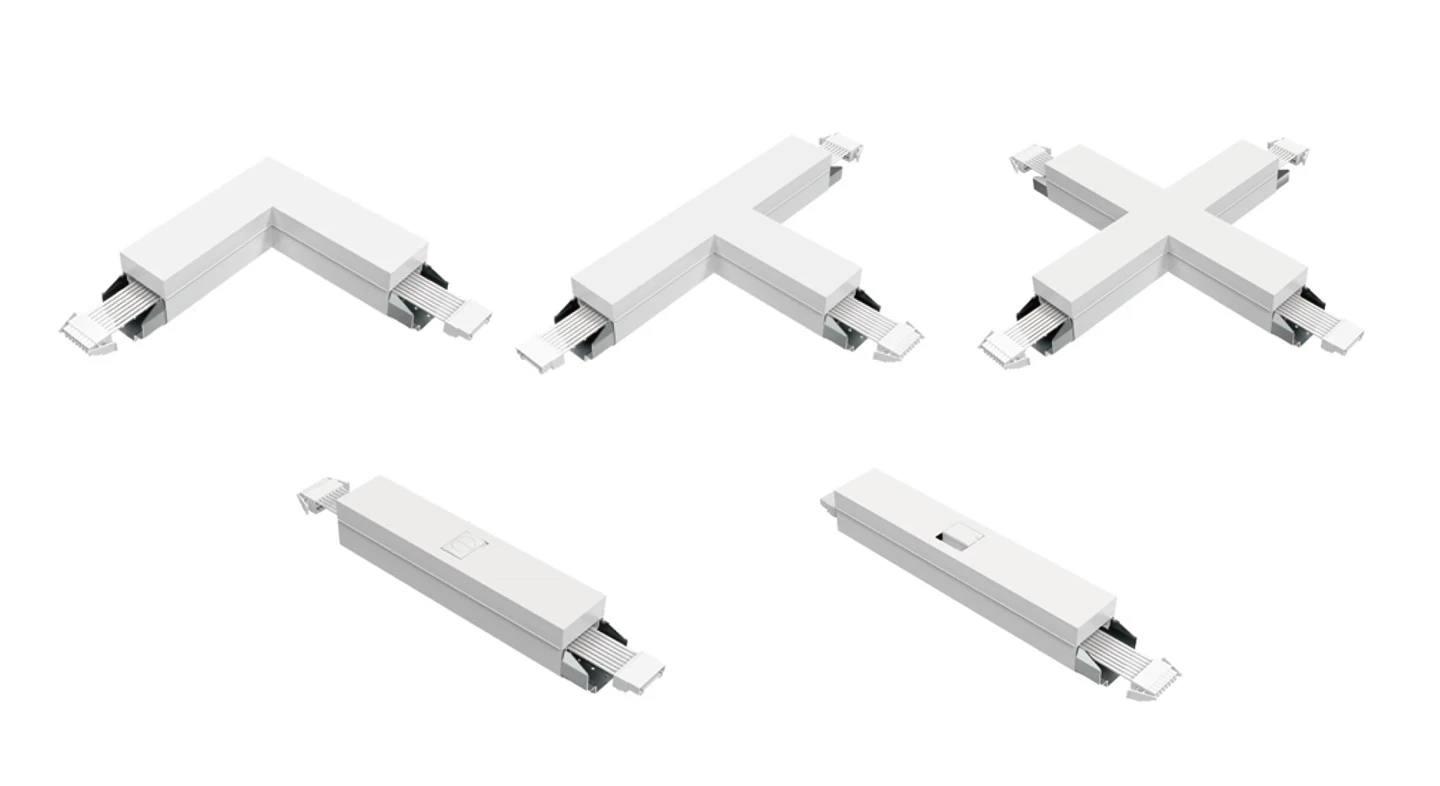

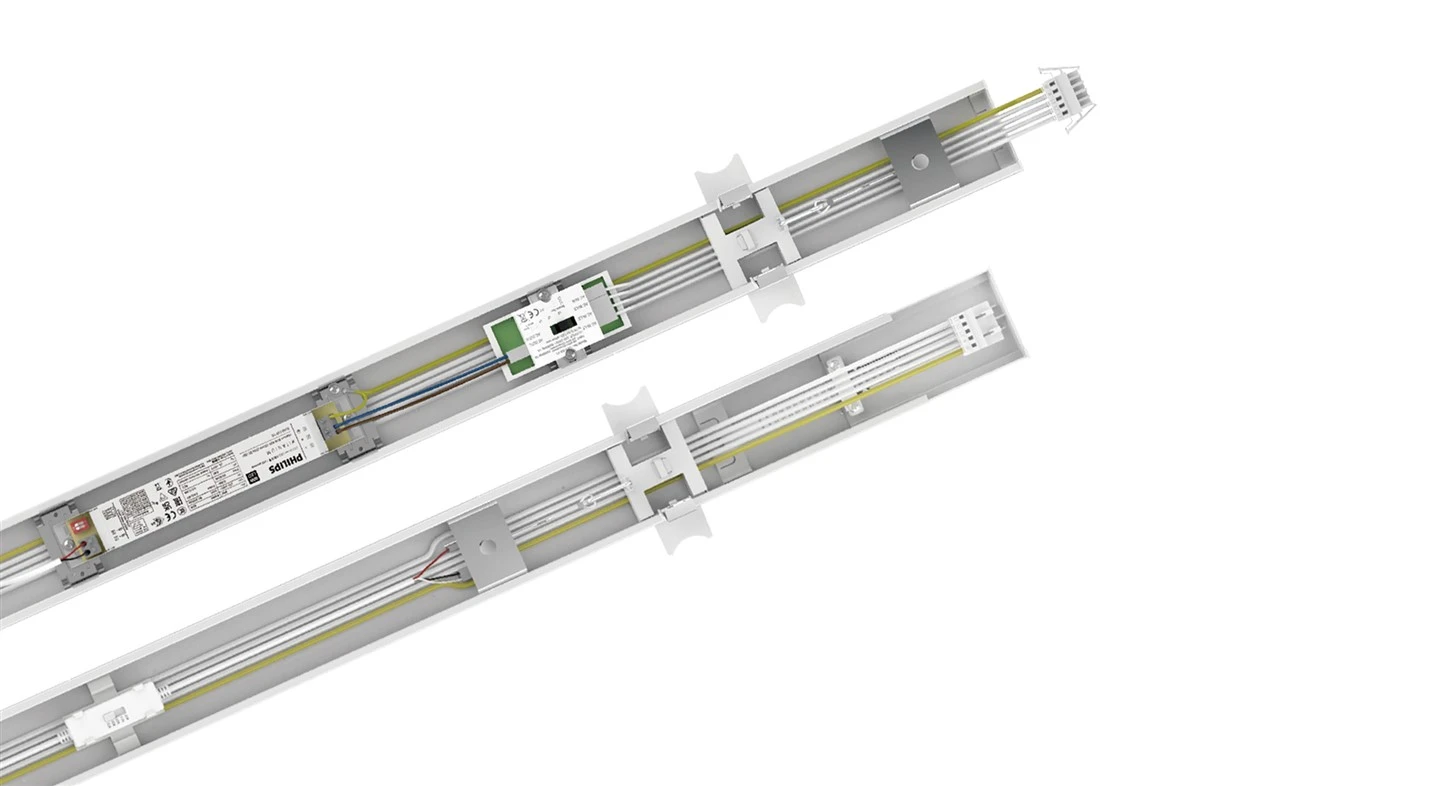

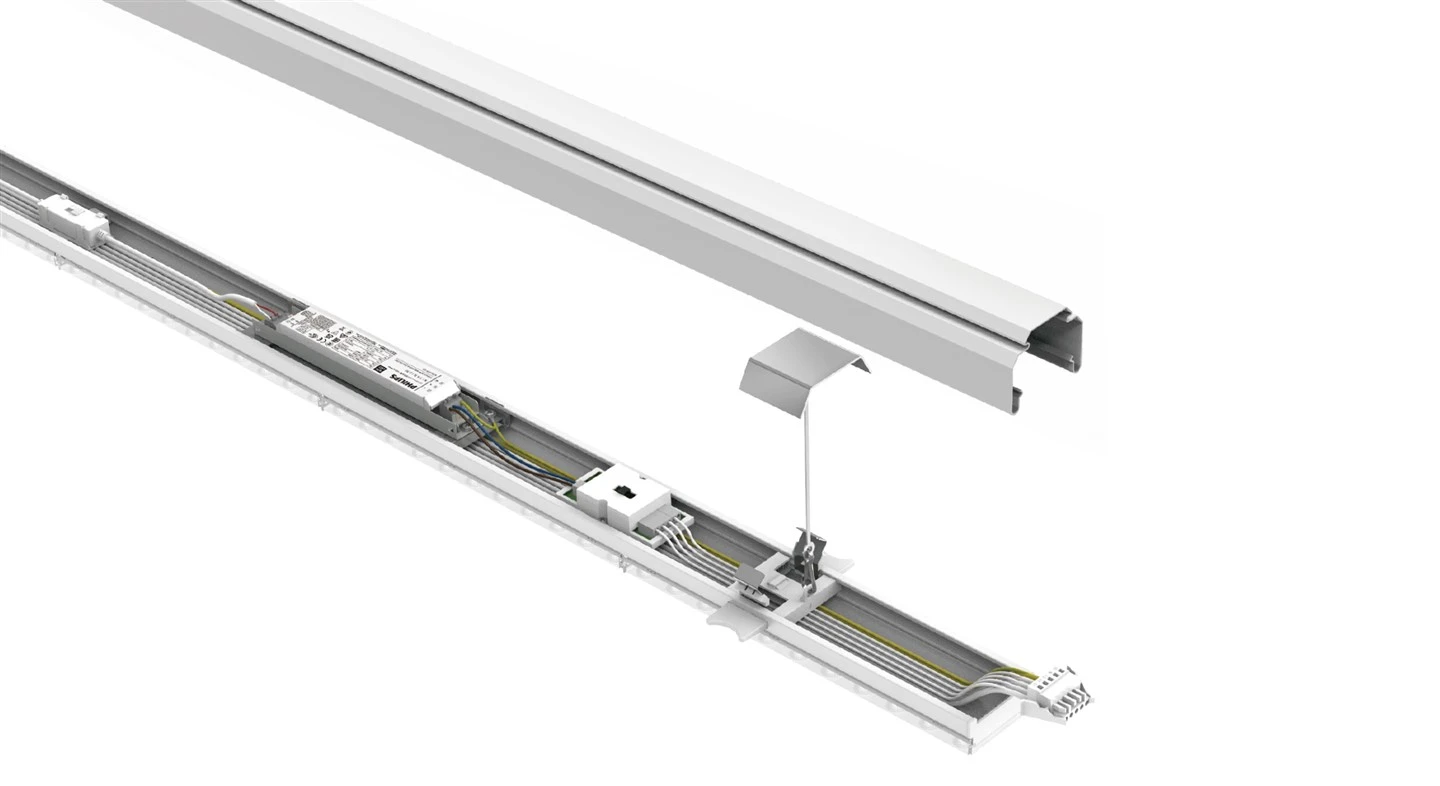

Retiro Flex wa pẹlu ṣeto awọn onirin asopọ ti iṣaju{{0}, ti o jẹ ki o jẹ ominira patapata lati inu egungun ẹhin fifi sori ẹrọ. ebute asopọ WAGO n pese ọna iyara ati irọrun lati sopọ module lẹhin module. Mejeeji ẹya 5-waya titan/pipa bi daradara bi ẹya 7-waya dimming ẹya ẹya-ara iyipada laini ipele 3 ti o ni iwọn ni 400V lati ṣẹda ọpọlọpọ awọn oju iṣẹlẹ fifi sori ẹrọ.
Ohun-ini:

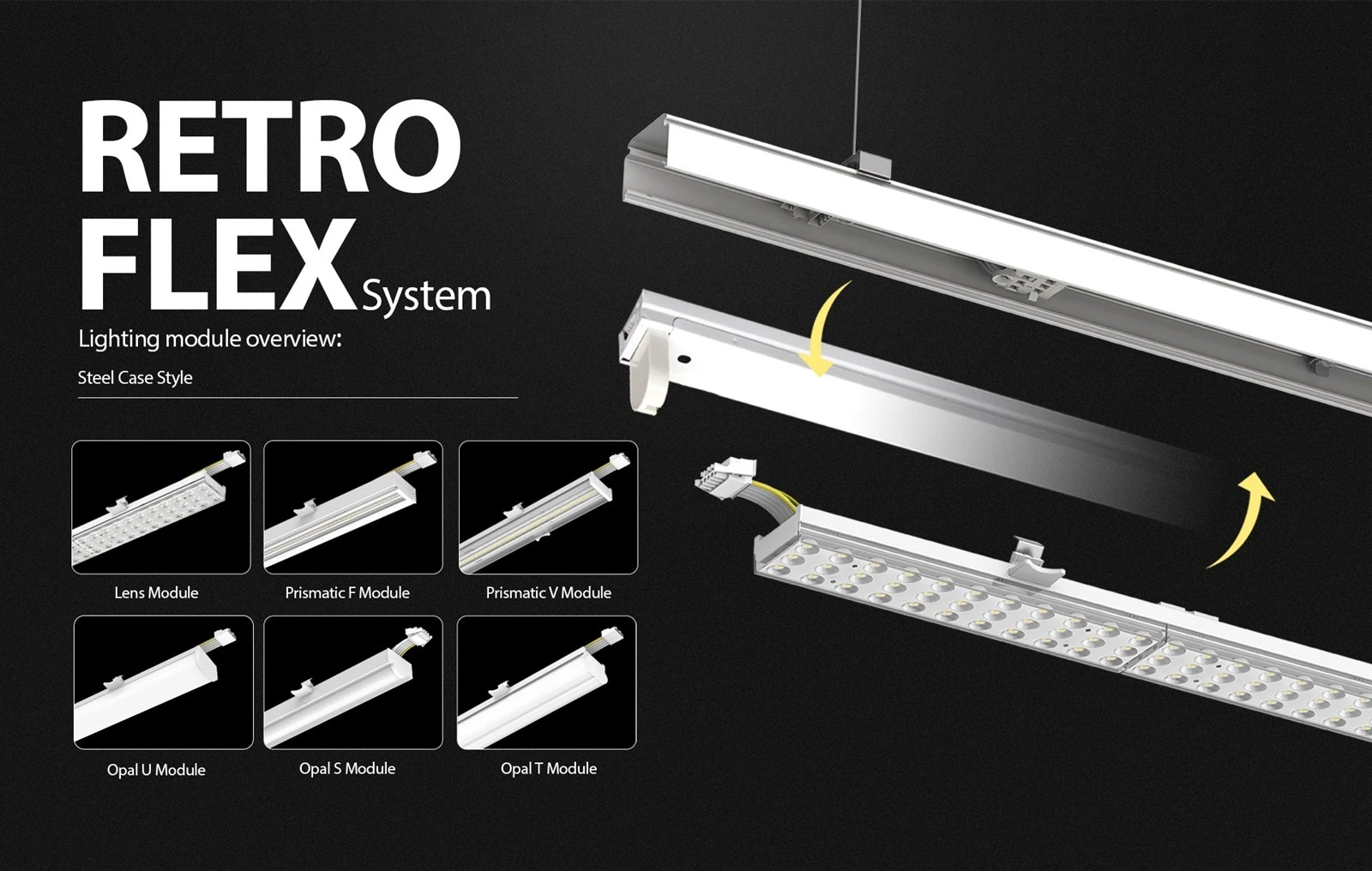

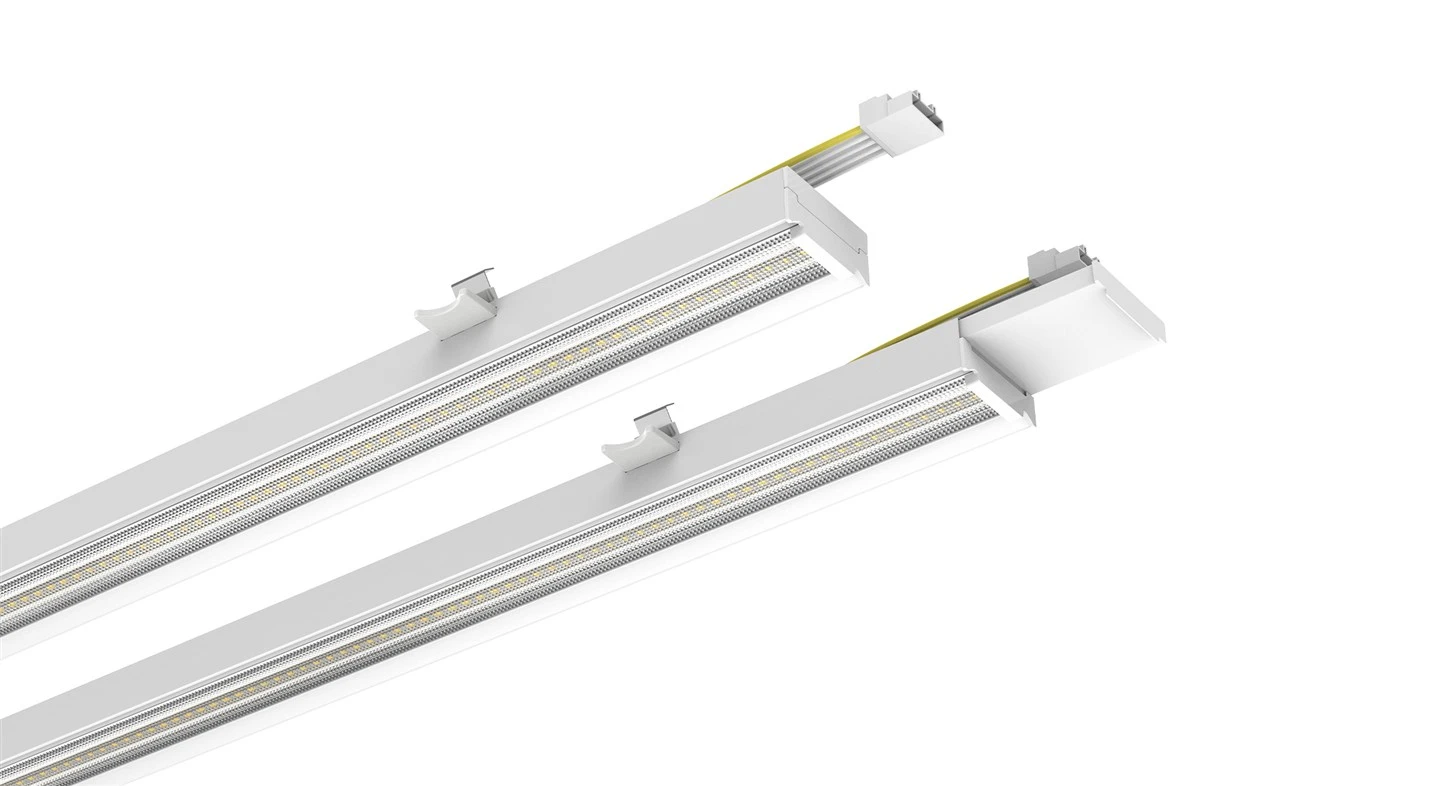

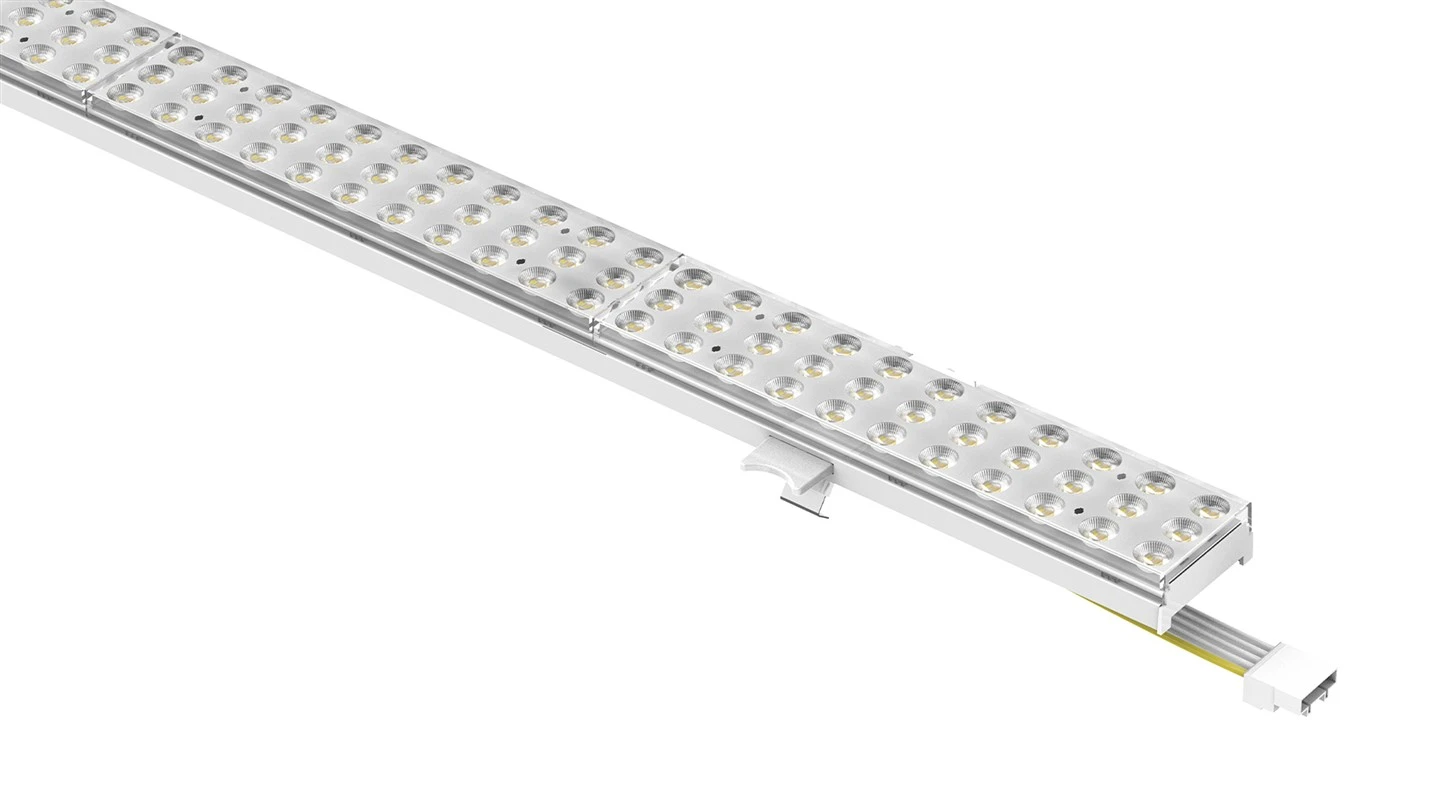

Retiro Flex wa pẹlu agekuru ọlọgbọn lori module LED ti o le gbe sinu awọn apoti ina ibile ti awọn burandi oriṣiriṣi bii: Philips, Trilux, Zumtobel, Siteco, Ridi ati ọpọlọpọ diẹ sii. Irọrun ati ti ara ẹni{1} eto didi aarin gba laaye module yii lati gbe sori ọpọlọpọ awọn apoti ina.
Kini iyatọ laarin Fuluorisenti laini ati awọn ina LED? Retro Flex wa pẹlu eto tirẹ ti awọn onirin awọn ọna asopọ ti o ṣaju{{0}, ti o jẹ ki o ni ominira patapata ti ẹhin mọto ti o ti fi sii. Ibusọ asopọ WAGO n pese ọna ti o yara ati irọrun lati so module kan pọ si omiiran.
|
Ideri |
koodu ibere |
Ti won won Agbara |
LM/W |
Lumen |
SDCM/Ra |
IP Kilasi |

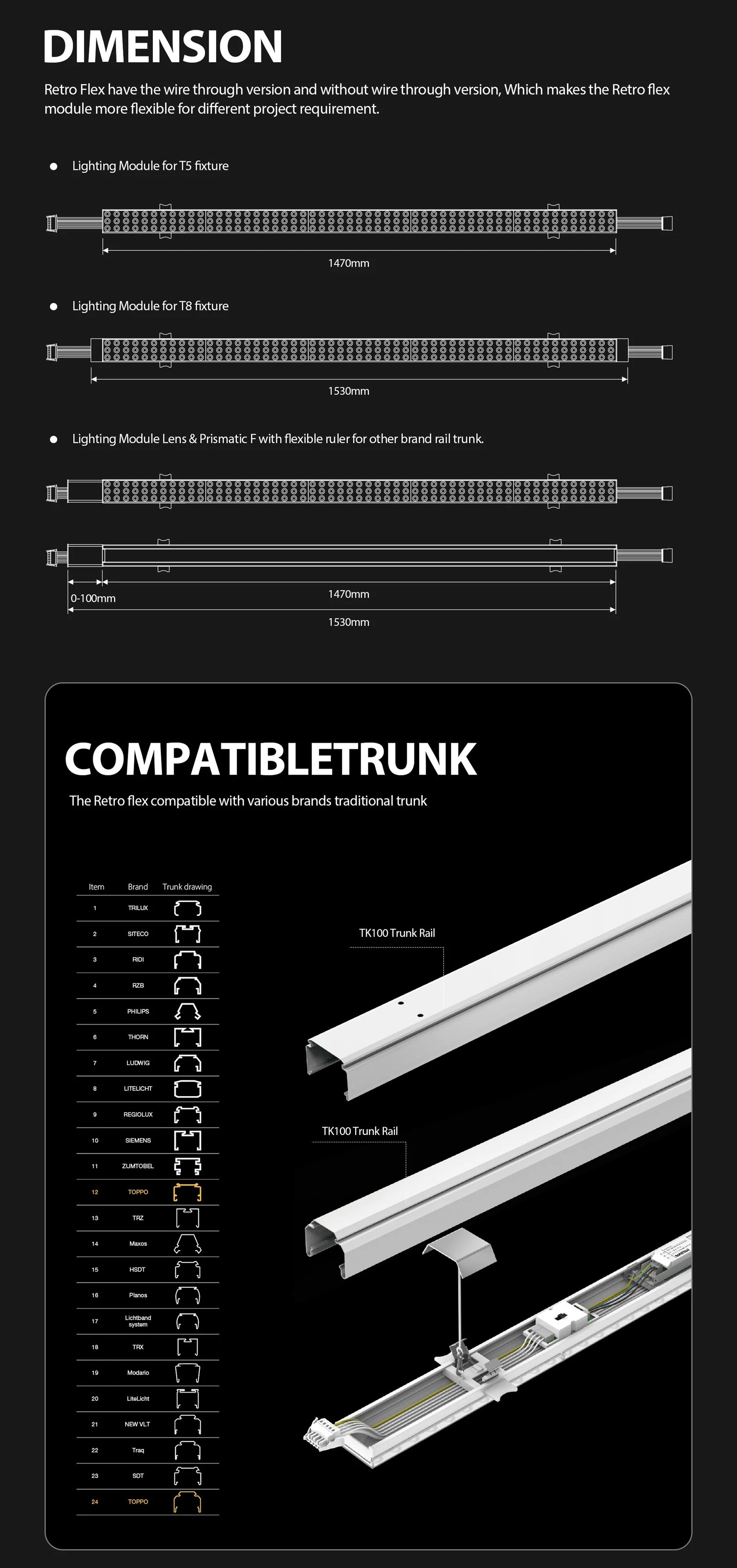

Ọja Dimension |
GW/CTN |
QTY/CTN |
|

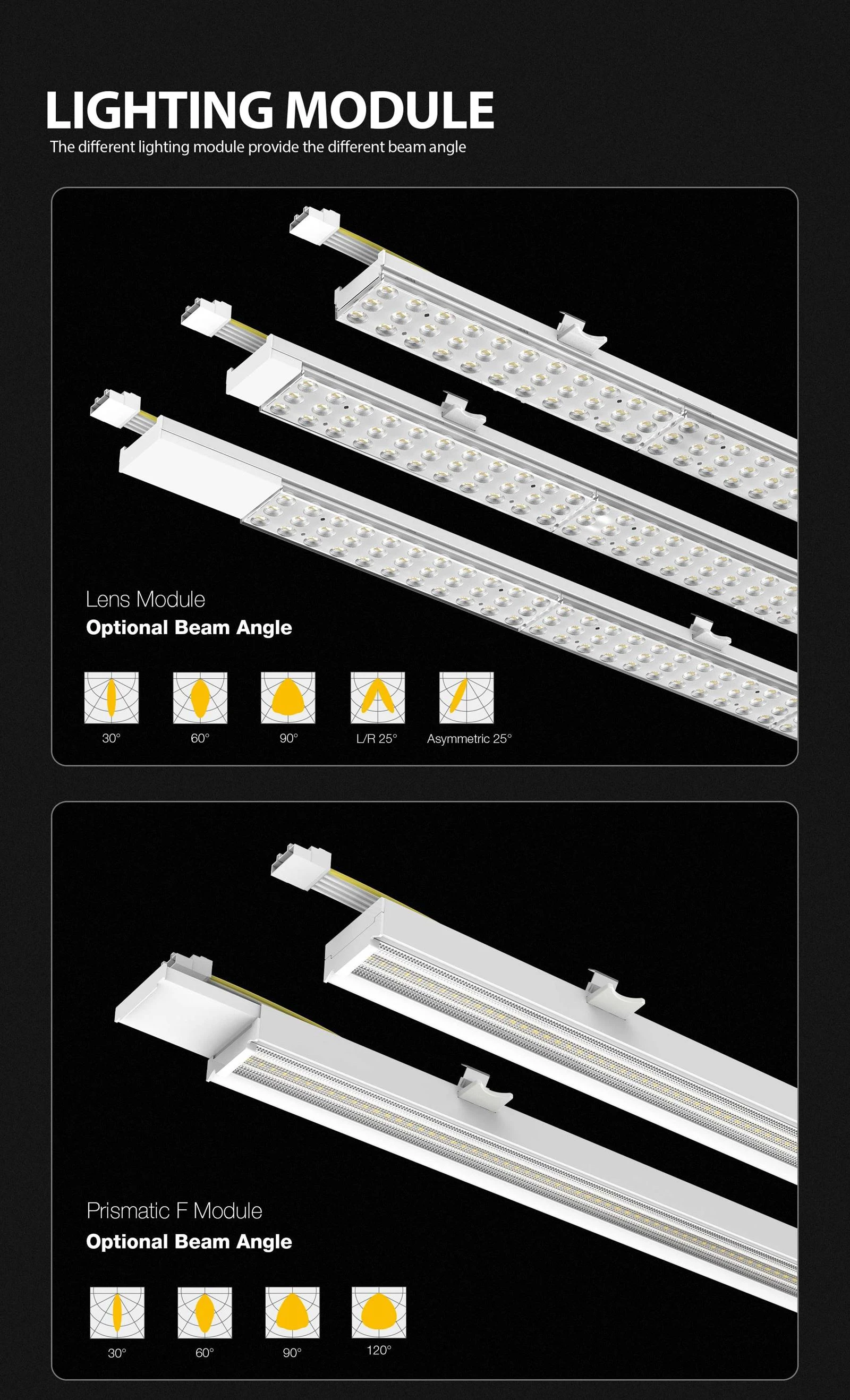

Opiti lẹnsi |
RF100-05W-DT1-75F01 |
20-75W |
Iru.180 |
Iru.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pcs |
|
Opiti lẹnsi |
RF100-05W-DT1-60F01 |
40-60W |
Iru.180 |
Iru.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pcs |
|
Opiti lẹnsi |
RF100-05W-DT1-70V01 |
50-70W |
Iru.180 |
Iru.9000-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pcs |
|
Opiti lẹnsi |
RF100-05W-DT1-75D01 |
20-75W |
Iru.180 |
Iru.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pcs |
|
Opiti lẹnsi |
RF100-05W-DT1-70D01 |
35-70W |
Iru.180 |
Iru.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pcs |
|
Opiti lẹnsi |
RF100-05W-DT1-75F01 |
35-75W |
Iru.180 |
Iru.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH34 |
14.5kg |
6pcs |
|
Opiti Prismatic F |
RF130-05W-DT1-75F01 |
20-75W |
Iru.180 |
Iru.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH39 |
14.5kg |
6pcs |
|
Opiti Prismatic F |
RF130-05W-DT1-60F01 |
40-60W |
Iru.180 |
Iru.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH39 |
14.5kg |
6pcs |
|
Opiti Prismatic F |
RF130-05W-DT1-75D01 |
20-75W |
Iru.180 |
Iru.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH39 |
14.5kg |
6pcs |
|
Opiti Prismatic F |
RF130-05W-DT1-70D01 |
35-70W |
Iru.180 |
Iru.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH39 |
14.5kg |
6pcs |
|
Opiti Prismatic F |
RF130-05W-DT1-75F01 |
35-75W |
Iru.180 |
Iru.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470 / 1530XW65XH39 |
14.5kg |
6pcs |
|

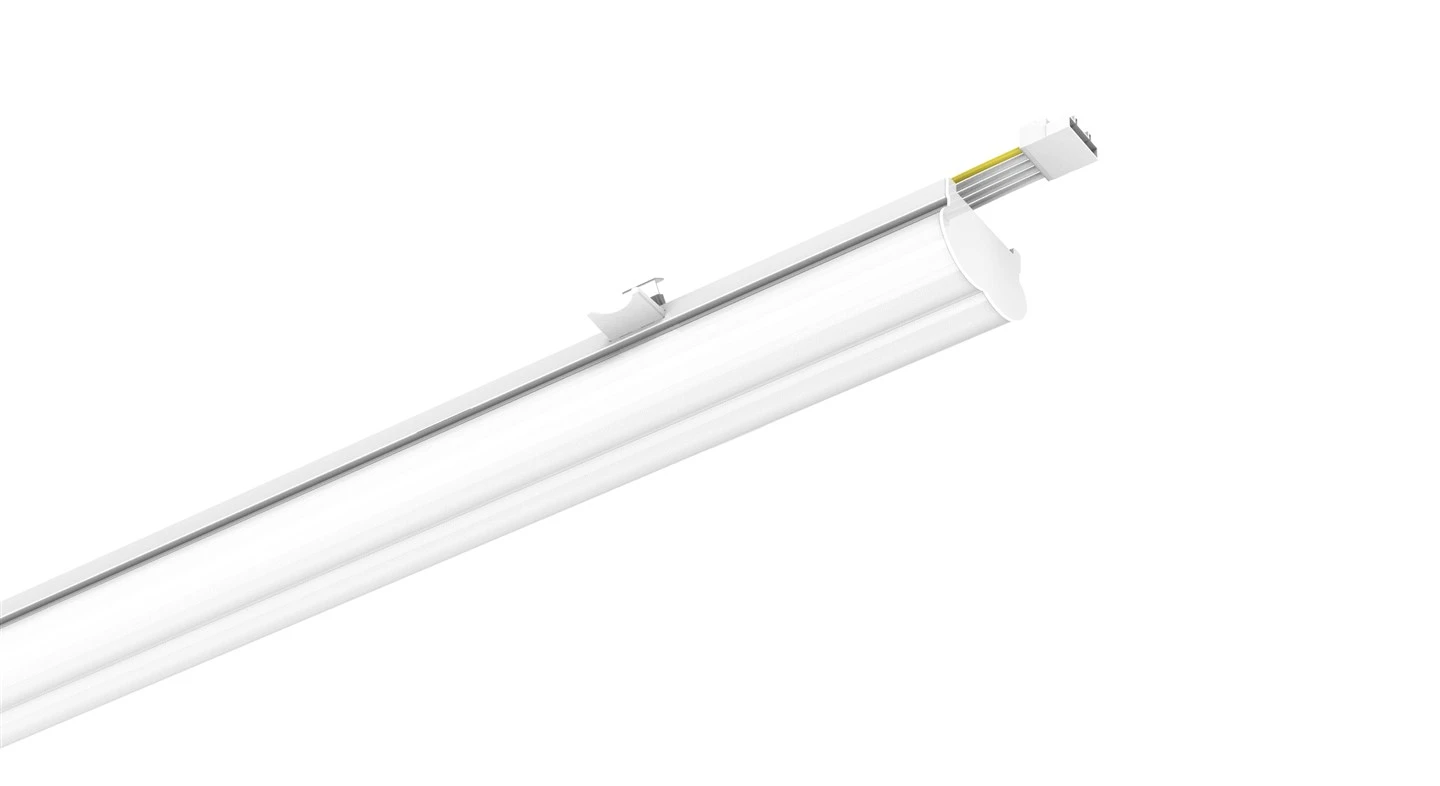

Opal T8 |
RF160-05W-DT1-75F01 |
20-75W |
Iru.180 |
Iru.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-60F01 |
40-60W |
Iru.180 |
Iru.7200-10800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160{1}05W-DT1-70V01 |
50-70W |
Iru.180 |
Iru.9000-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-75D01 |
20-75W |
Iru.180 |
Iru.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-70D01 |
35-70W |
Iru.180 |
Iru.6300-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pcs |
|
Opal T8 |
RF160-05W-DT1-75F01 |
35-75W |
Iru.180 |
Iru.6300-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470 / 1530XW65XH36 |
14.5kg |
6pcs |
