UNI Flex System

UNI Flex System

Apejuwe:

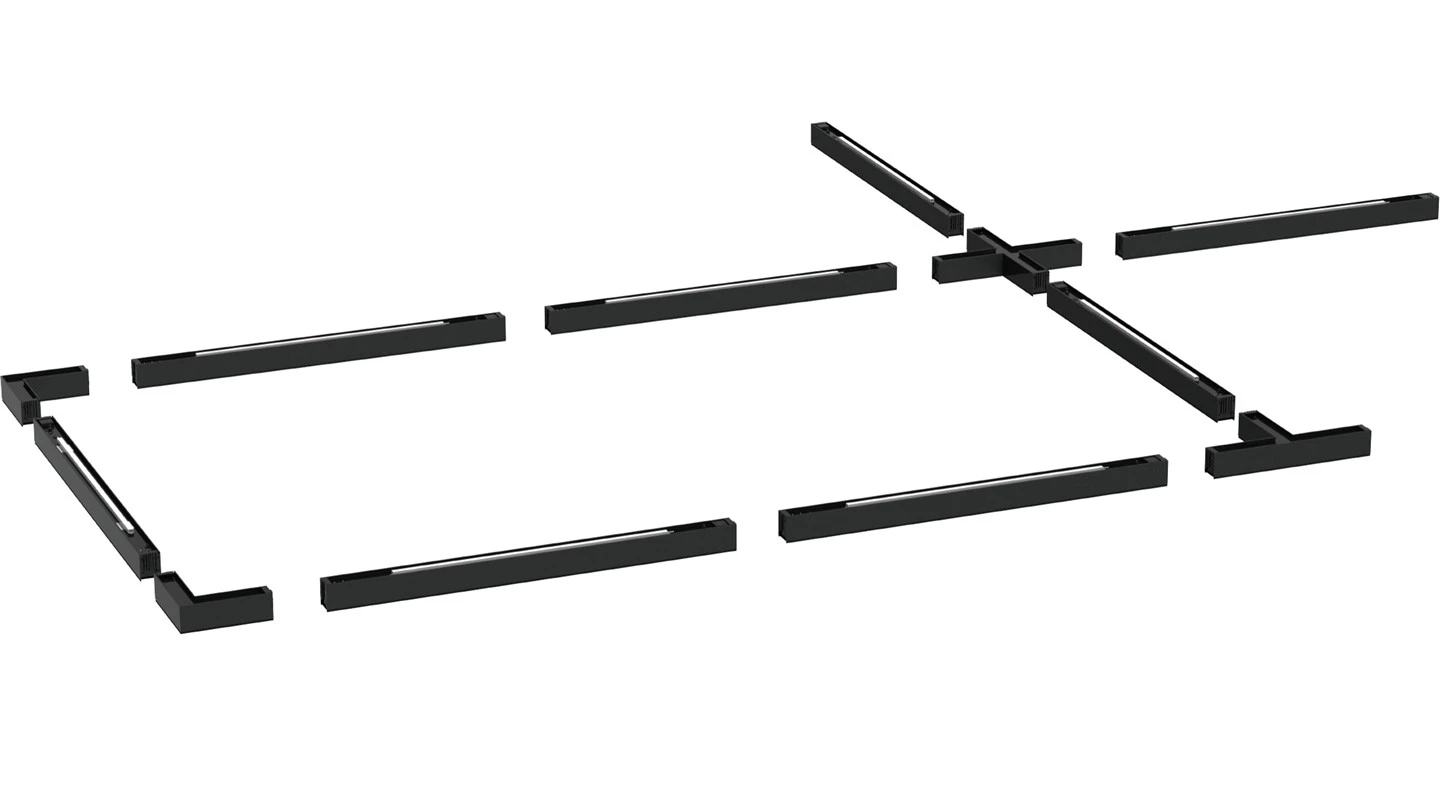

Eto Flex UNI jẹ ​​ina laini ti a ṣe apẹrẹ igbalode. Imọran apẹrẹ wa lati iṣaju ti ina ode oni. Nitoribẹẹ, o jẹ lilo pupọ nipasẹ awọn alabara ni iṣowo / ọfiisi ati awọn ohun elo ina miiran.UNI Flex awọn ọna ṣiṣe le jẹ pupọ - ti a sopọ nipasẹ awọn itọnisọna ọtọtọ/L/R/X/T pẹlu asopọ node laisi aafo eyikeyi laarin module ina. Ideri PC to rọ ṣe adiro ina lẹhin ọna asopọ. Awọn ẹya pataki wọnyi jẹ ki eto uni flex siwaju ati olokiki diẹ sii ni aaye ina LED.









Ẹya ara ẹrọ:

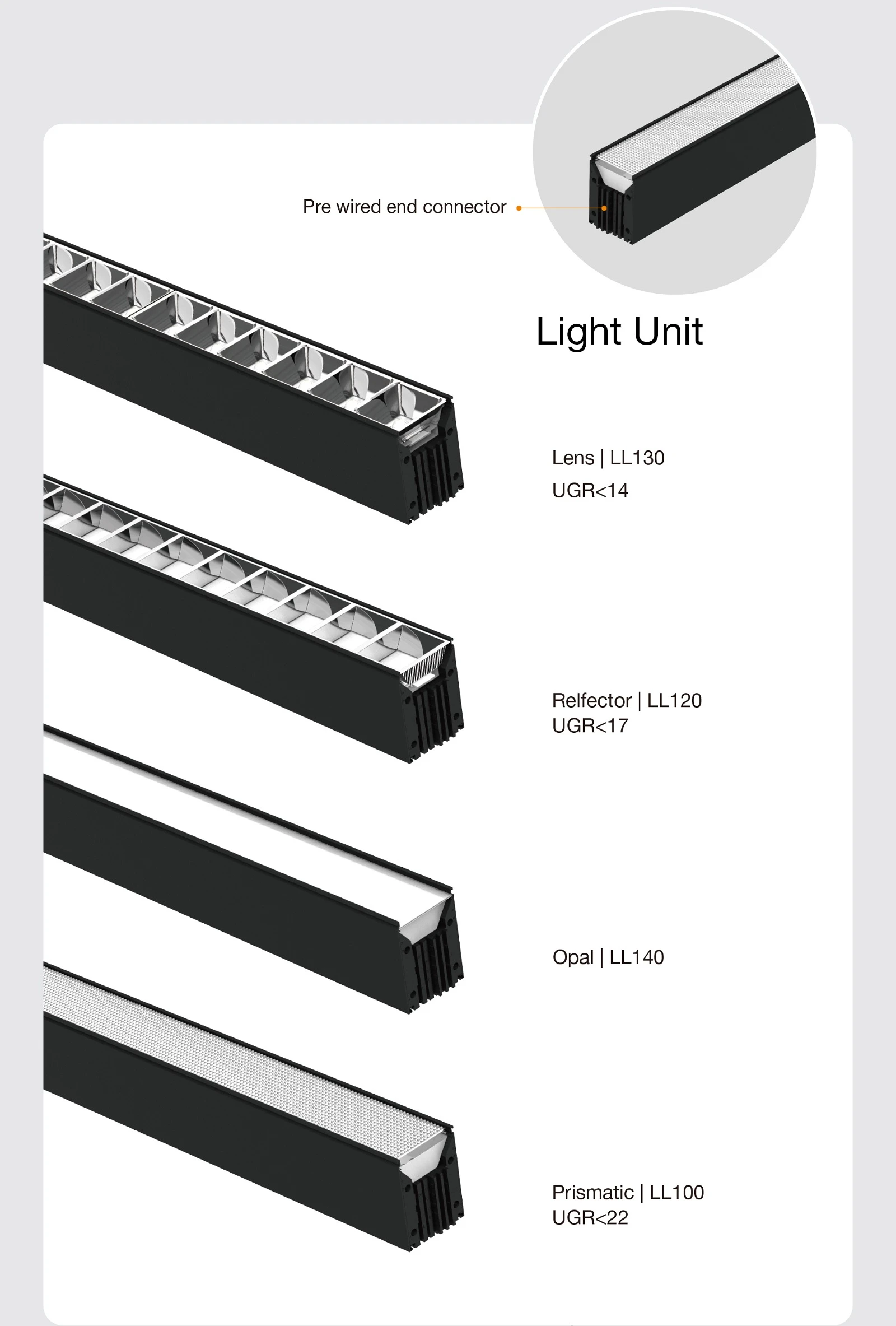

>Orisirisi ti o yatọ si ina module

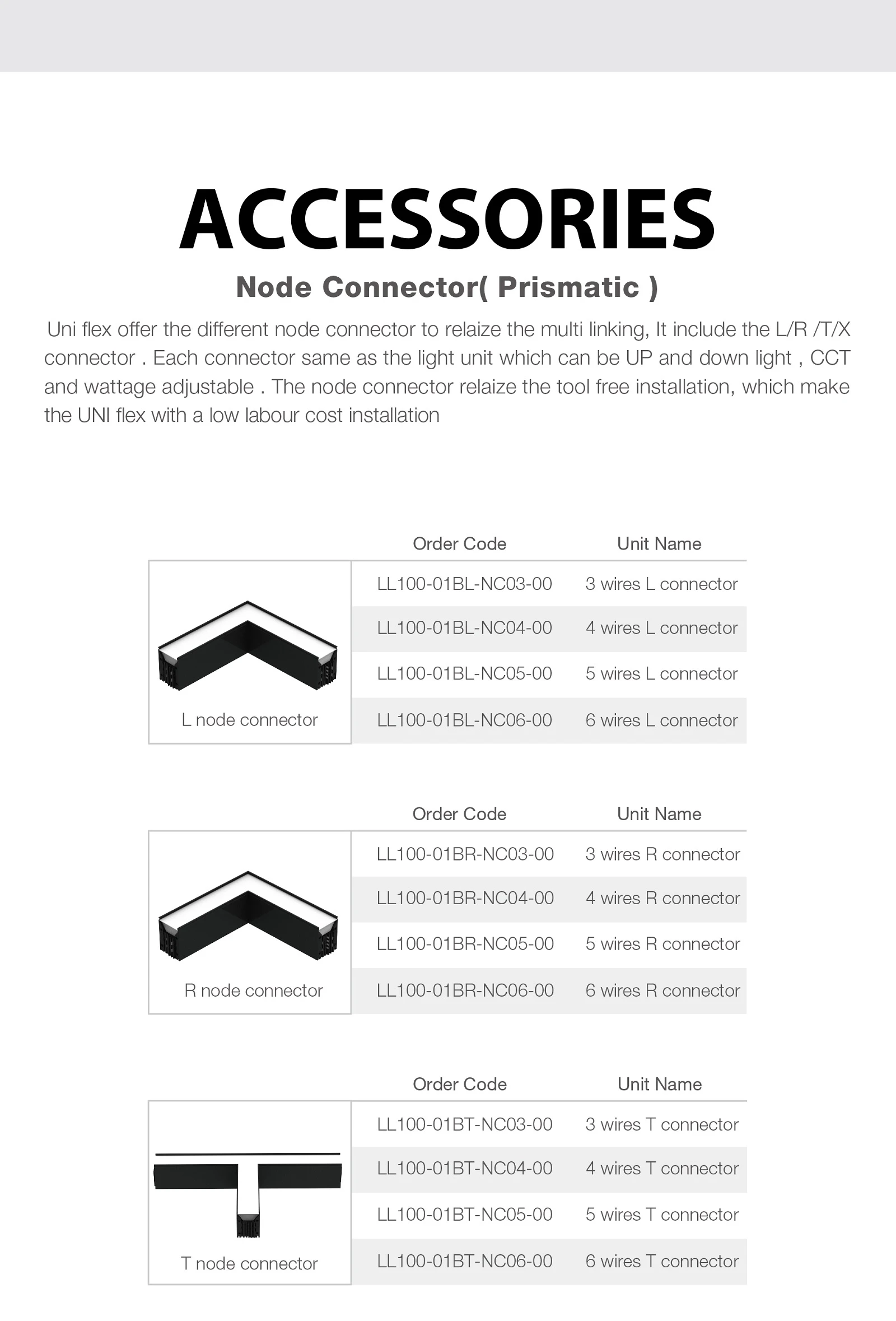

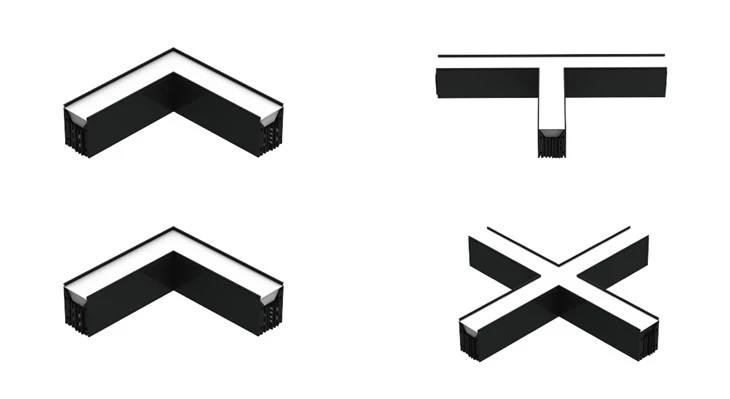

>Taara / L / R / T / X node conector fun ọpọ ọna asopọ

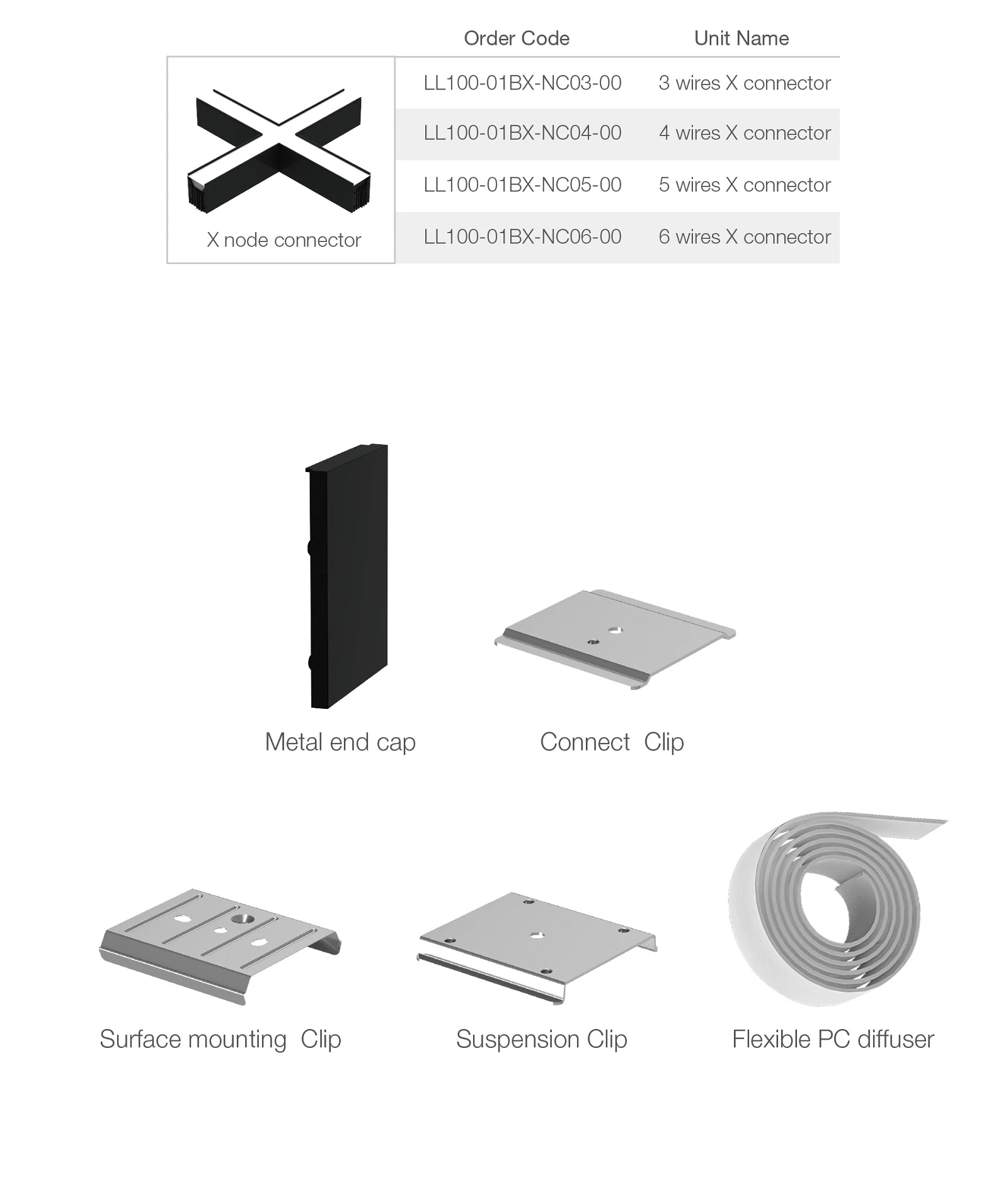

>Ideri PC ti o rọ fun ina adiro lẹhin ọna asopọ pupọ

>O yatọ si brand iwakọ fun aṣayan

>CCT ati wattage yipada bi awọn aṣayan

Send Inquiry
Download
Description
Technical Parameters

ÌBÁLẸ̀:

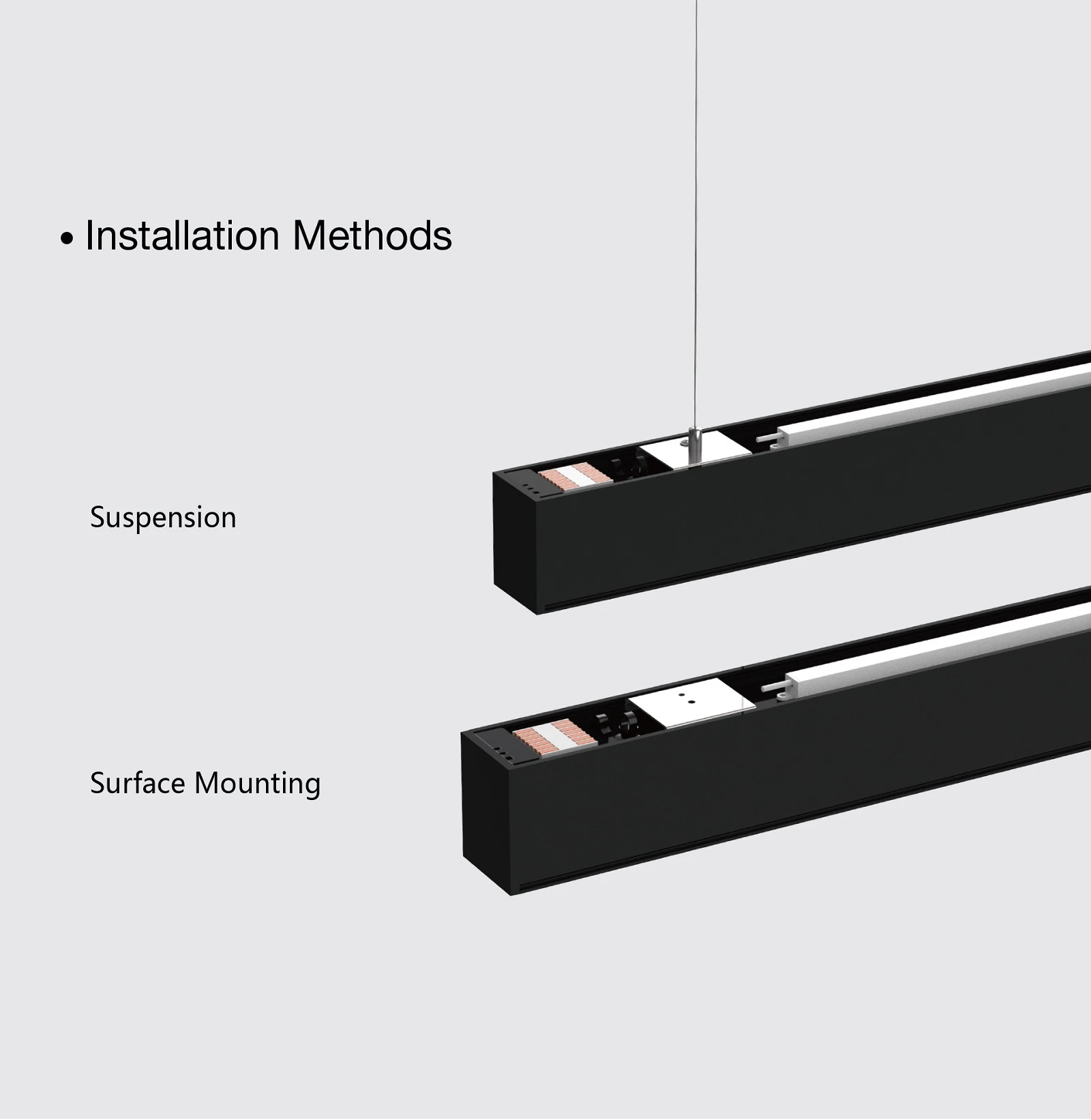

UNI Flex le jẹ ina laini ifasilẹ, awọn luminaires laini ti daduro, awọn ina laini ti o gbe dada, itanna orin, ati tun itanna LED ti a ṣe apẹrẹ asopọ. O ni awọn aṣayan ina oriṣiriṣi, awọn fifi sori ẹrọ ati awọn asopọ oriṣiriṣi pẹlu ko si opin lori ipari asopọ ti o pọju. Awọn ẹya oriṣiriṣi ti a mẹnuba loke ṣe UNI Flex linear pupọ igbalode ati lilo pupọ ni itanna ọfiisi, ina iṣowo, ina soobu, bbl Bawo ni o yẹ ki aaye laarin awọn imọlẹ laini jẹ? O yẹ ki o wo UNI Flex wa, eyiti ko ni opin asopọ.



Diffuser

UGR

koodu ibere

Ti won won Agbara

LM/W

Lumen

SDCM/Ra

IP Kilasi

Ọja Dimension

Išẹ

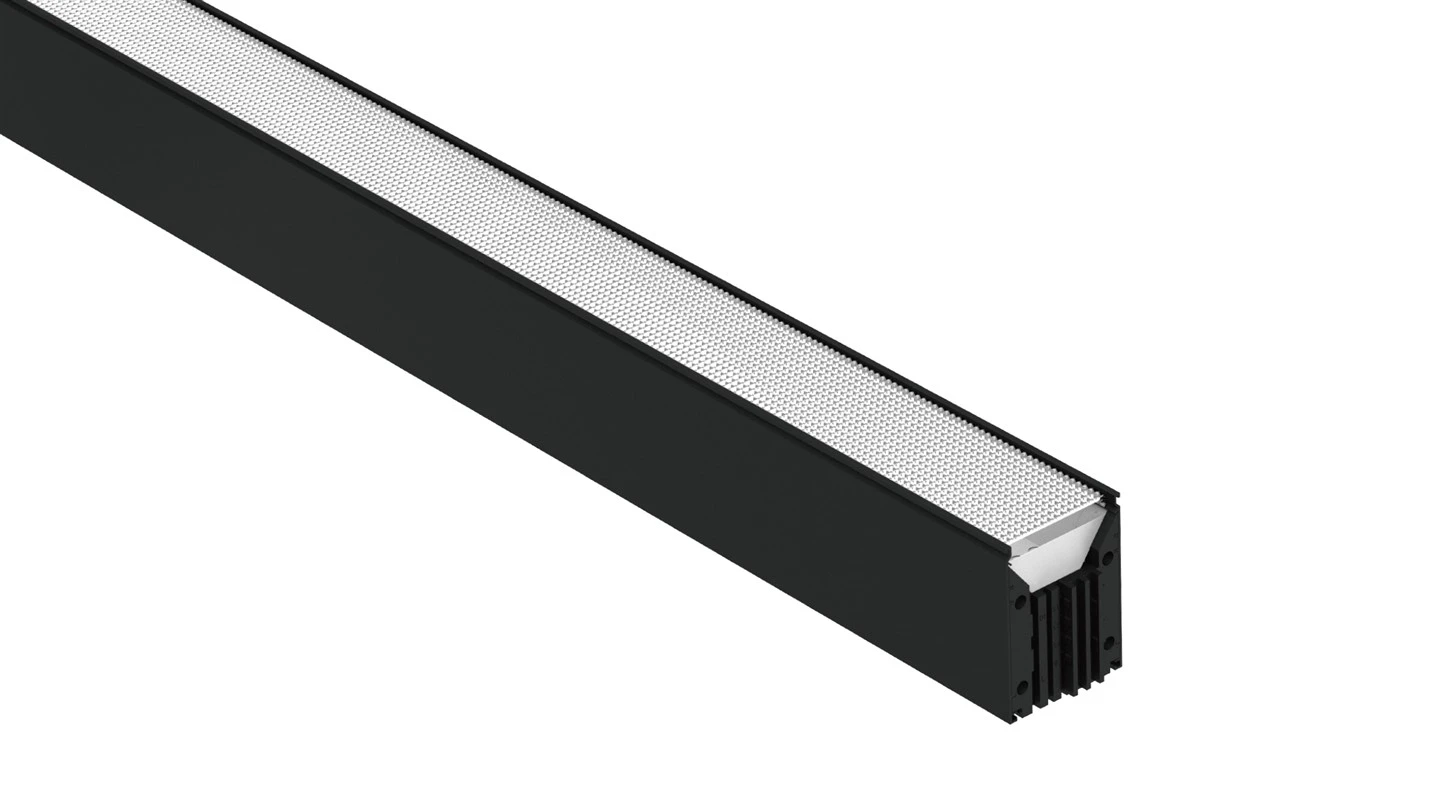

Prismatic

UGR
<22

LL400-04B-AT1-40F01

20-40W

Iru.130

Iru.2600-5200

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PAA -

Prismatic

UGR
<22

LL400{1}04B-AT1-40V01

20-40W

Iru.130

Iru.2600-5200

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PWM (Fun MS)

Prismatic

UGR
<22

LL400-04B-AT1-40D01

20-40W

Iru.130

Iru.2600-5200

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

DALI

Prismatic

UGR
<22

LL400-05B-AT1-50F01

30-50W

Iru.130

Iru.3900-6500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PAA -

Prismatic

UGR
<22

LL400-05B-AT1-50V01

30-50W

Iru.130

Iru.3900-6500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PWM (Fun MS)

Prismatic

UGR
<22

LL400-05B-AT1-50D01

30-50W

Iru.130

Iru.3900-6500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

DALI

Prismatic

UGR
<22

LL400-06B-AT1-60F01

40-60W

Iru.130

Iru.5200-7800

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PAA -

Prismatic

UGR
<22

LL400{1}06B-AT1-60V01

40-60W

Iru.130

Iru.5200-7800

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PWM (Fun MS)

Prismatic

UGR
<22

LL400{1}06B-AT1-60D01

40-60W

Iru.130

Iru.5200-7800

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

DALI

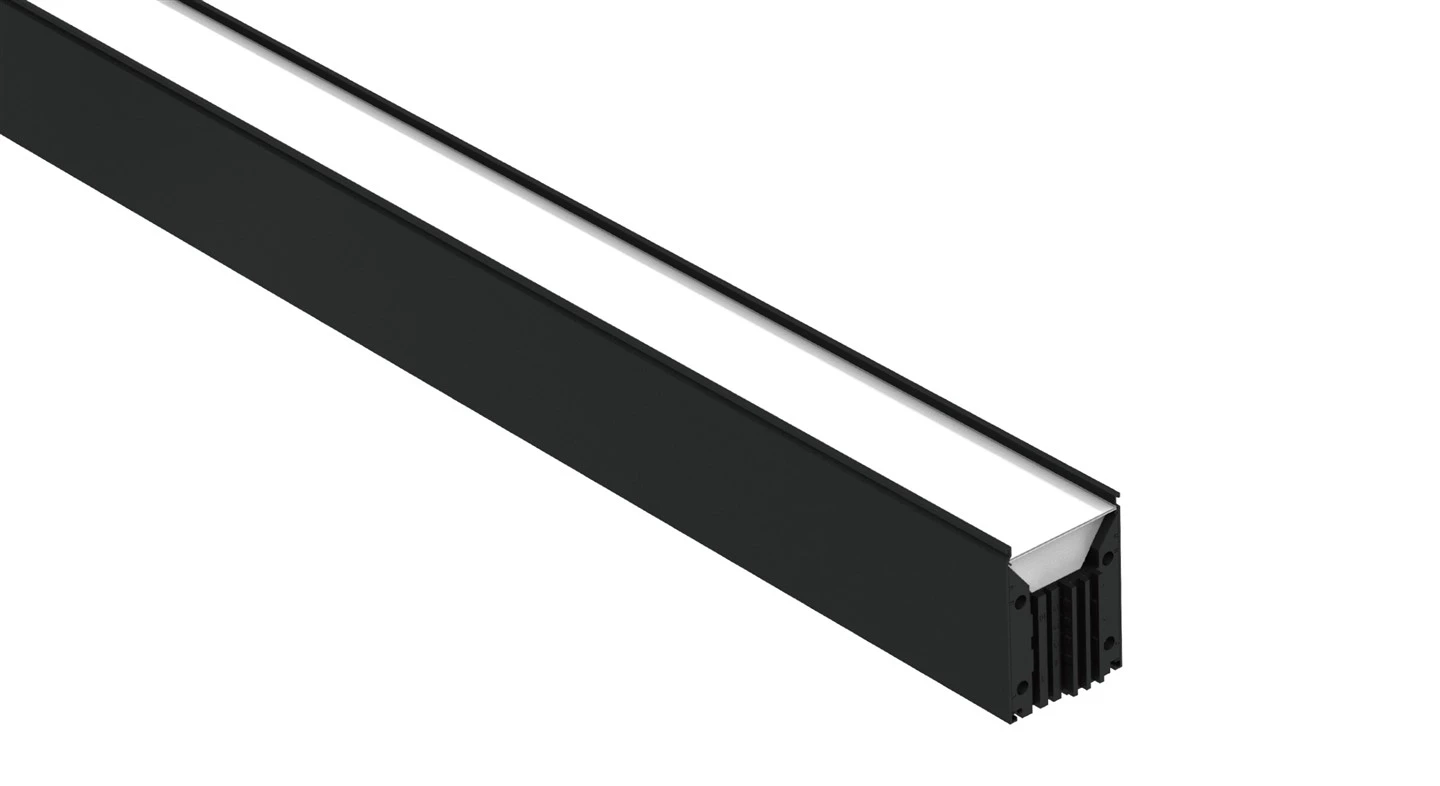

Opal

/

LL410-04B-AT1-40F01

20-40W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PAA -

Opal

/

LL410{1}04B-AT1-40V01

20-40W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PWM (Fun MS)

Opal

/

LL410{1}04B-AT1-40D01

20-40W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

DALI

Opal

/

LL410-05B-AT1-50F01

30-50W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PAA -

Opal

/

LL410{1}05B-AT1-50V01

30-50W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PWM (Fun MS)

Opal

/

LL110{1}05B-DT1-40D01

30-50W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

DALI

Opal

/

LL410{1}05B-AT1-50D01

40-60W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PAA -

Opal

/

LL110{1}05B-DT1-40D01

40-60W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PWM (Fun MS)

Opal

/

LL110{1}05B-DT1-40V01

40-60W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

DALI

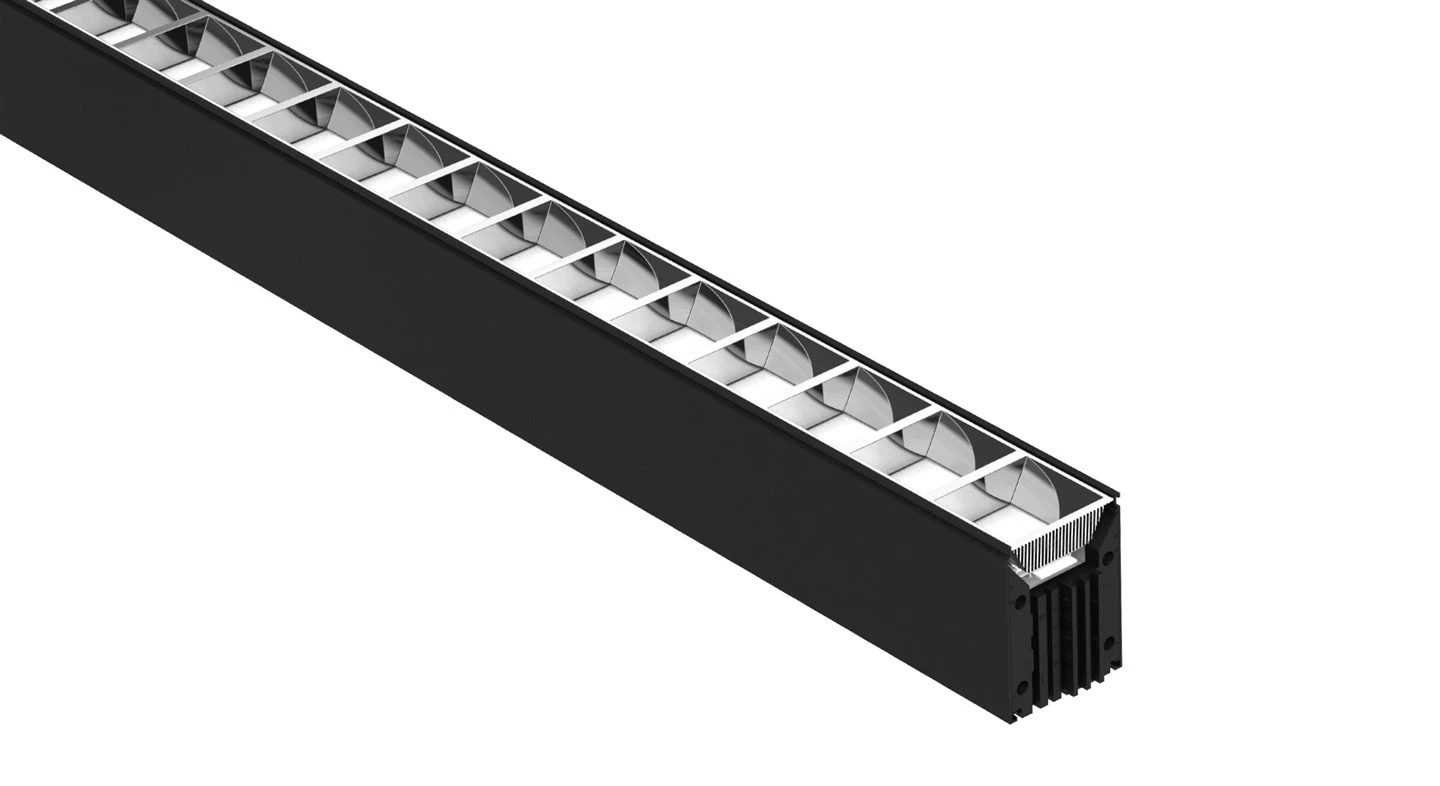

Olufihan

UGR
<17

LL420{1}04B-RT1-40F01

20-40W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PAA -

Olufihan

UGR
<17

LL420{1}04B-RT1-40V01

20-40W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PWM (Fun MS)

Olufihan

UGR
<17

LL420{1}04B-RT1-40D01

20-40W

Iru.150

Iru.3000-6000

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

DALI

Olufihan

UGR
<17

LL420{1}05B-RT1-50F01

30-50W

Iru.150

Iru.4500-7500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PAA -

Olufihan

UGR
<17

LL420{1}05B-RT1-50V01

30-50W

Iru.150

Iru.4500-7500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PWM (Fun MS)

Olufihan

UGR
<17

LL420{1}05B-RT1-50D01

30-50W

Iru.150

Iru.4500-7500

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

DALI

Olufihan

UGR
<17

LL420{1}06B-RT1-60F01

40-60W

Iru.150

Iru.6000-9000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PAA -

Olufihan

UGR
<17

LL420{1}06B-RT1-60V01

40-60W

Iru.150

Iru.6000-9000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PWM (Fun MS)

Olufihan

UGR
<17

LL420{1}06B-RT1-60D01

40-60W

Iru.150

Iru.6000-9000

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

DALI

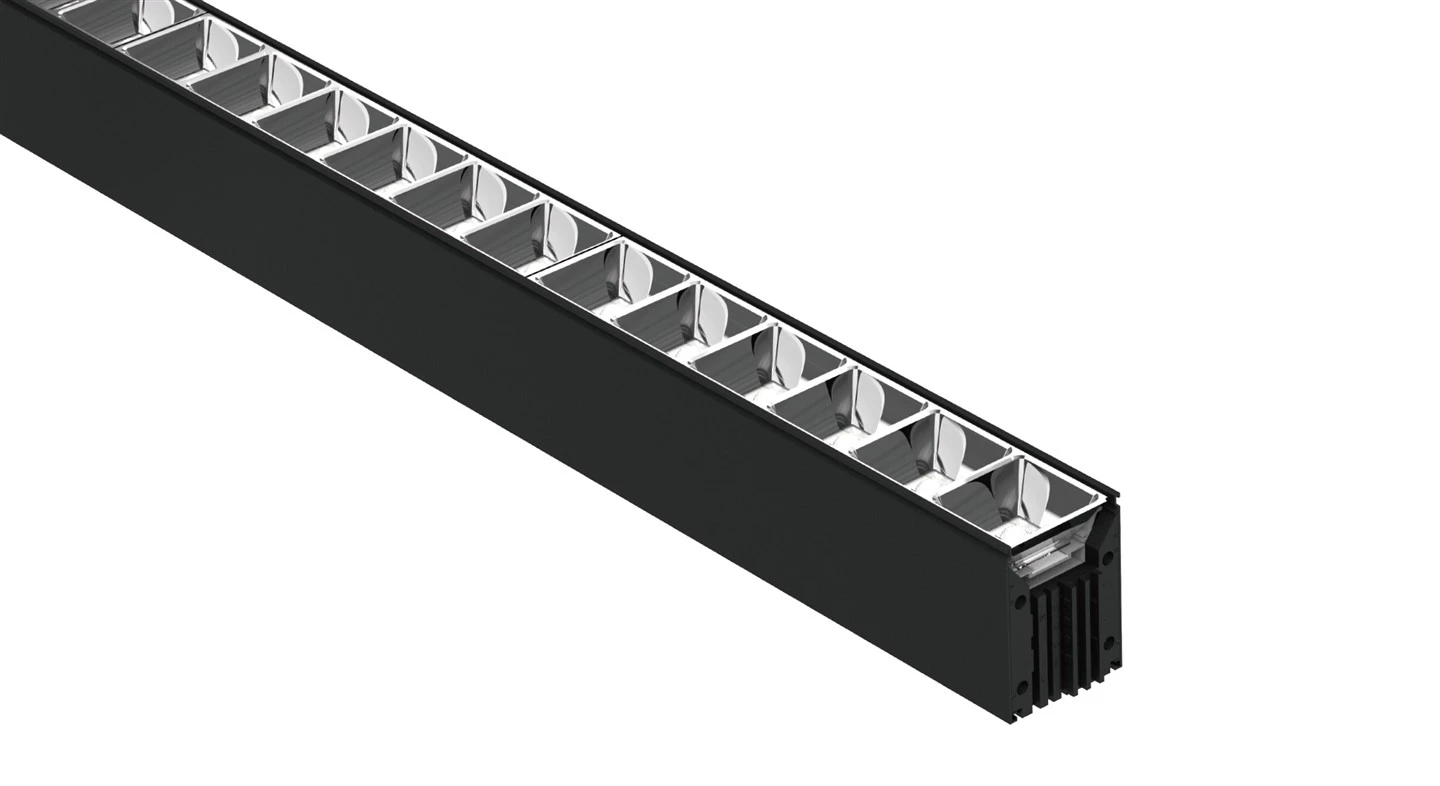

Lẹnsi

UGR
<14

LL430{1}04B-CT1-40F01

20-40W

Iru.160

Iru.3200-6400

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PAA -

Lẹnsi

UGR
<14

LL430{1}04B-CT1-40V01

20-40W

Iru.160

Iru.3200-6400

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

PWM (Fun MS)

Lẹnsi

UGR
<14

LL430{1}04B-CT1-40D01

20-40W

Iru.160

Iru.3200-6400

SDCM<3,<5/Ra80,90

IP20

L1150xW60xH80

DALI

Lẹnsi

UGR
<14

LL430{1}05B-CT1-50F01

30-50W

Iru.160

Iru.4800-8000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PAA -

Lẹnsi

UGR
<14

LL430{1}05B-CT1-50V01

30-50W

Iru.160

Iru.4800-8000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

PWM (Fun MS)

Lẹnsi

UGR
<14

LL430{1}05B-CT1-50D01

30-50W

Iru.160

Iru.4800-8000

SDCM<3,<5/Ra80,90

IP20

L1437xW60xH80

DALI

Lẹnsi

UGR
<14

LL430{1}06B-CT1-60F01

40-60W

Iru.160

Iru.6400-9600

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PAA -

Lẹnsi

UGR
<14

LL430{1}06B-CT1-60V01

40-60W

Iru.160

Iru.6400-9600

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

PWM (Fun MS)

Lẹnsi

UGR
<14

LL430{1}06B-CT1-60D01

40-60W

Iru.160

Iru.6400-9600

SDCM<3,<5/Ra80,90

IP20

L1723xW60xH80

DALI

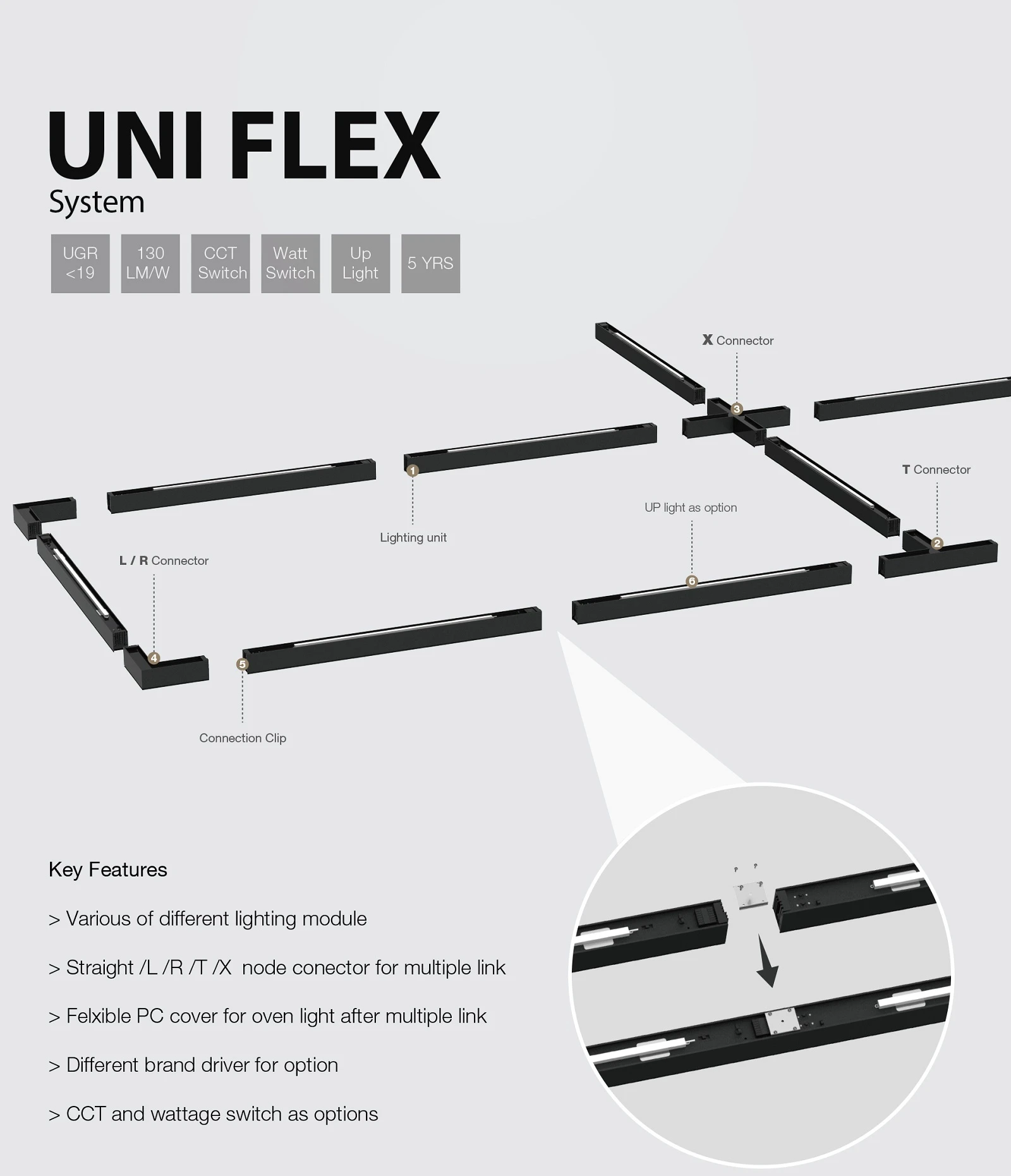

uniflex01

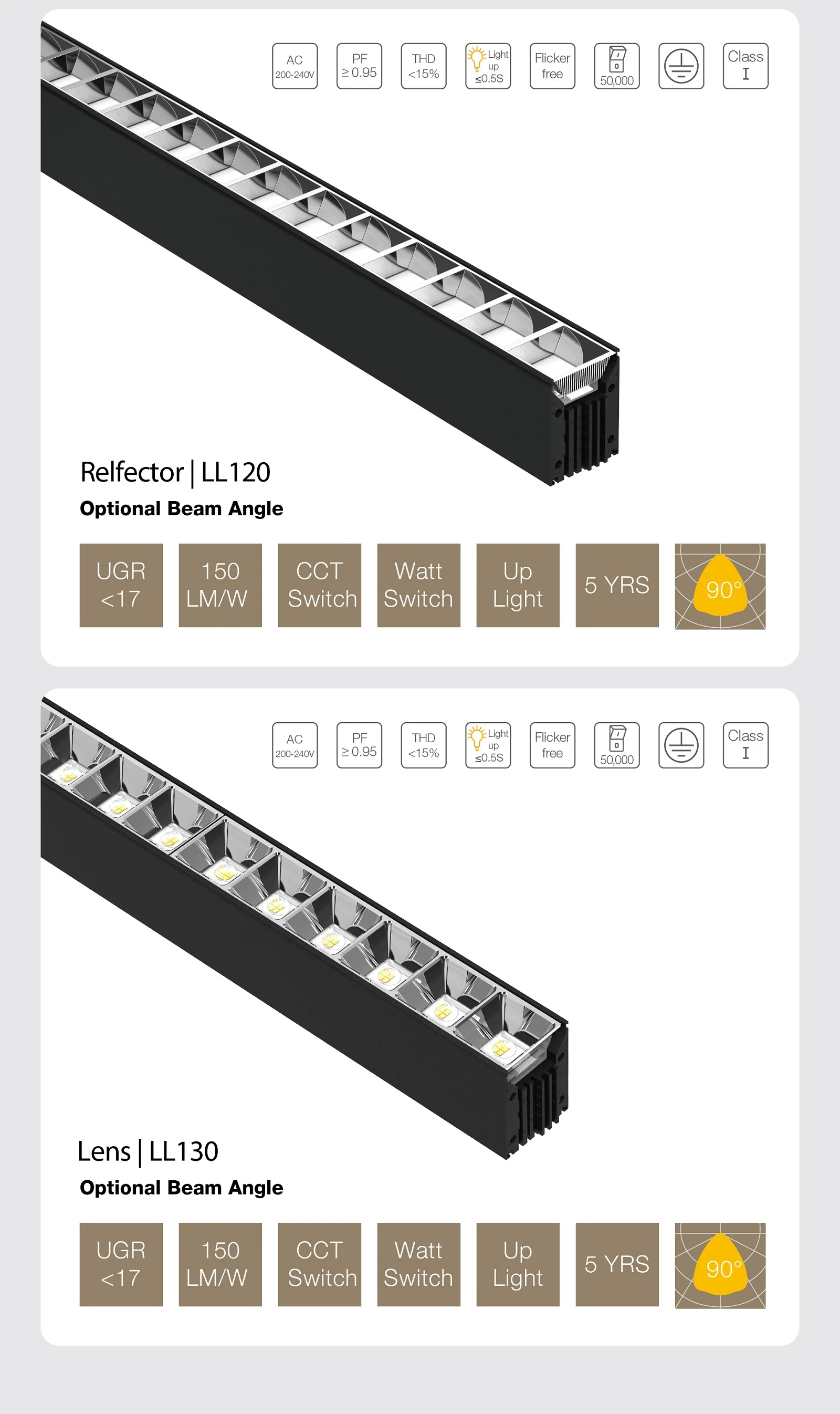

uniflex02

uniflex03

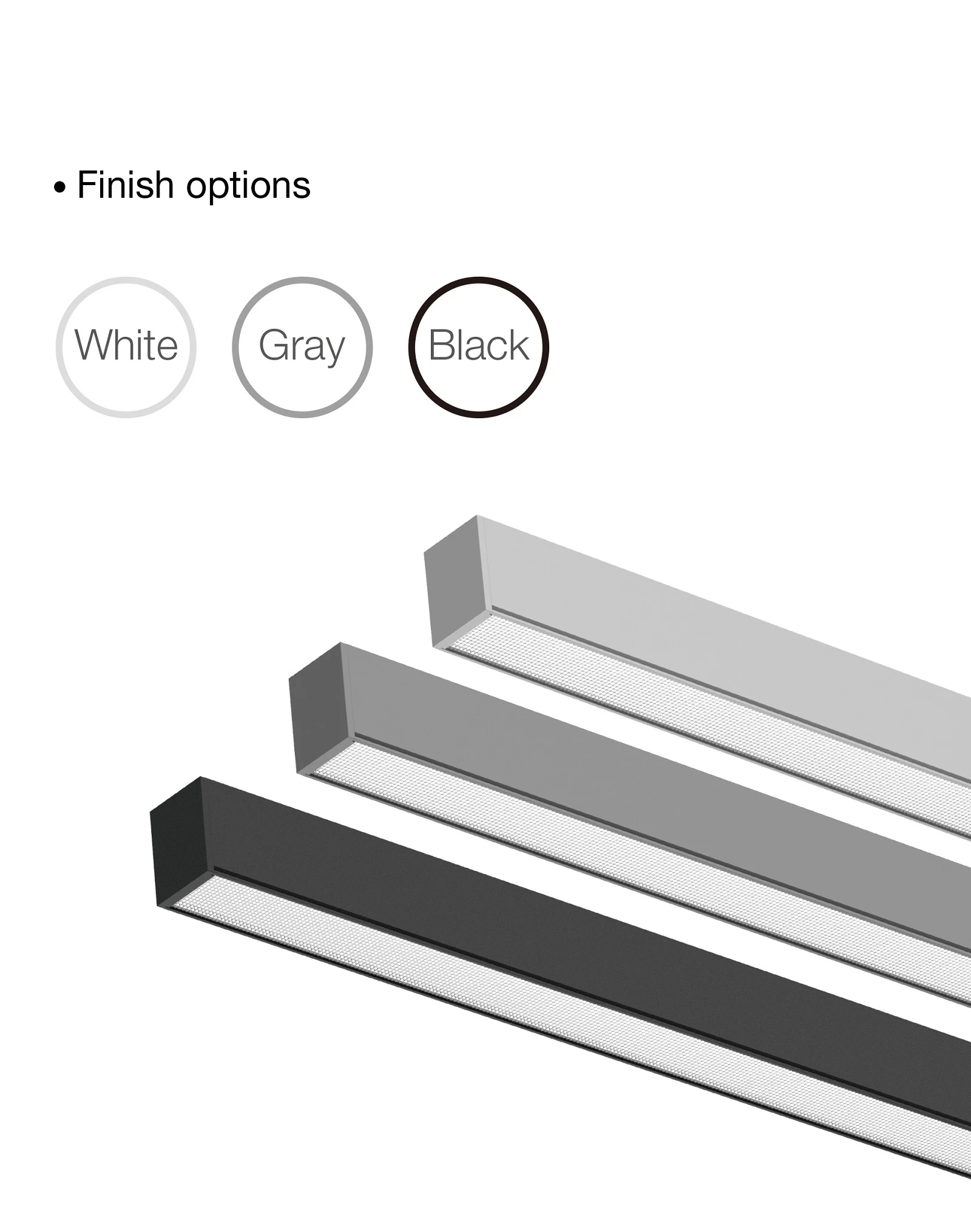

uniflex04

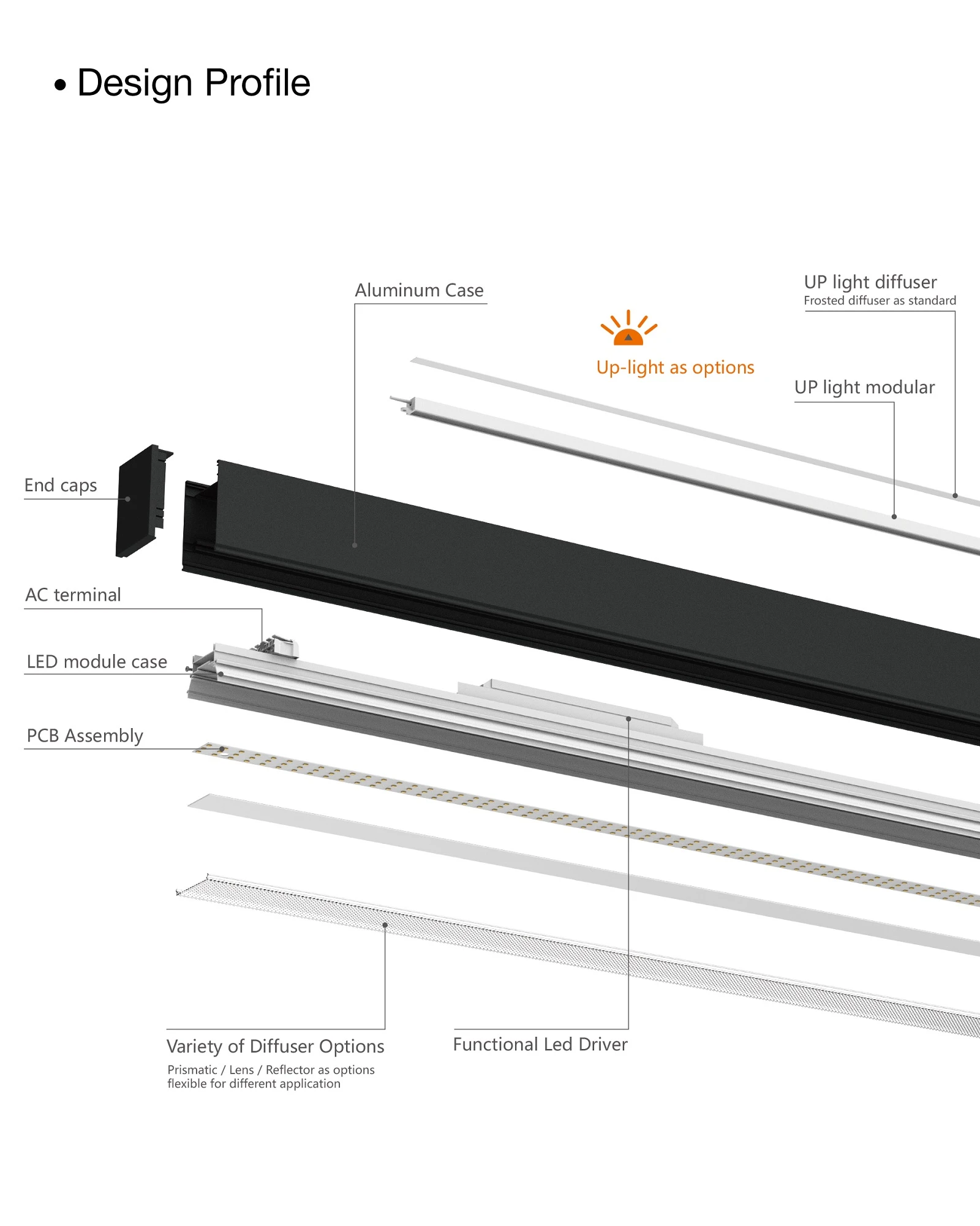

uniflex05

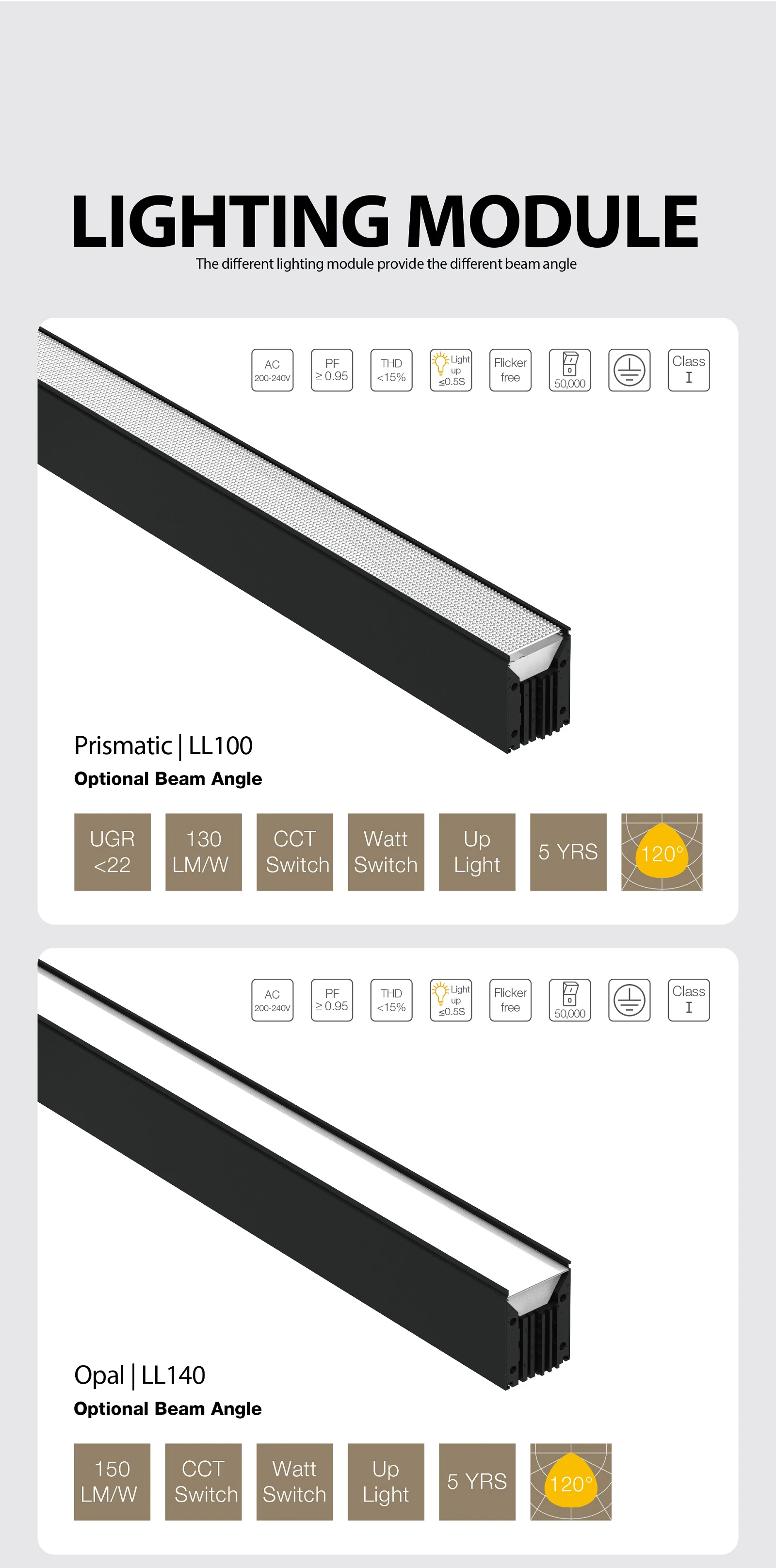

uniflex06

uniflex07

uniflex08

uniflex09
